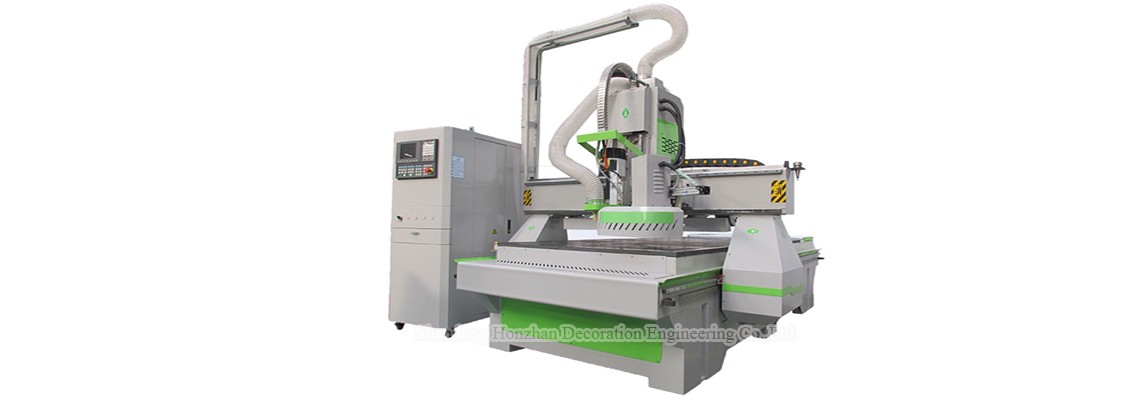

<p><span style="color:#000000;"><strong>HZ-ATC1325A Automatic Tool Changer ATC Woodworking CNC Router</strong></span></p> <p><span style="color:#000000;"><strong>1. Application materials:</strong><br /> 1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.<br /> Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet。<br /> 2). Wood products: game cabinets, computer tables, sewing tables, musical instruments, bookcase, entrance cabinet, display cabinet, medicine cabinet, wooden speaker<br /> 3). Decoration industry: Acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and soft metal such as copper and aluminum.</span></p> <p><span style="color:#000000;">This CNC router have automatic tool changer, automatic vacuuming, automatic positioning, automatic oiling functions. Applicable to many kinds of wood boards&#39; plane milling, engraving, hollowing, cutting, 3D relief etc diversified processing.</span></p> <p><span style="color:#000000;"><strong>2. CNC Router Performance Characteristics:</strong><br /> 1). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.<br /> 2). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.<br /> 3). High quality vacuum adsorption platform, help achieve the perfect cutting effect. Can perfectly realize special-shaped cutting, small-cut cutting, and the minimum cutting plate can reach 25mm.<br /> 4). Good dust collector effect, can take away 95% dust, keep clean working environment.<br /> 5). Safety intelligence, with intelligent processing and cross-border protection, prevent mechanical collisions caused by processing size exceeding design layout.<br /> 6). CNC machine use computer control, simple operation, greatly improving work efficiency.</span></p> <p><strong><span style="color:#000000;">3. Technical parameters:</span></strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:1pt solid windowtext;width:700px;"> <tbody> <tr> <td colspan="4"> <p><span style="color:#000000;">Machine: HZ-ATC1325A Automatic Tool Changer ATC Woodworking CNC Router</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Model</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">HZ-ATC1325A</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Platform size</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">1300*2550mm</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Work area(X,Y,Z)</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Travelling speed</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">60m-80m/min (MAX)</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working speed</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">20m/min (MAX) </span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working voltage </span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">AC380V/3PH/50HZ</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Spindle power</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">ChangChuan CC 9KW Automatic tool changer spindle (24000RPM/min speed)</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Tools magazine</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Carousel 12 tools magazine automatic tool changer</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Device architecture</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">De-stressing and finishing milling, one molding process,</span></p> <p style="text-align: center;"><span style="color:#000000;">Anti-jamming independent cabinet, high structural stability and small deformation</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Driving system </span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Japan Yaskawa servo motor and driving system </span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Transmission parts</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Alloy hardened Rack and pinion, TBI Ball screw transmission and Hiwin linear rail</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Operating system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Taiwan Syntec windows control system</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Positioning method</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">High precision automatic positioning cylinder</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Countertop structure</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Vacuum adsorption platform</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Inverter</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">FULING 11KW high precision inverter</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Lubrication system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Automatic Oil pump centralized lubrication control</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Security system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Overtravel protection, electrical protection</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Dust collector</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">High power automatic dust collector with dust collector hood</span></p> </td> </tr> <tr style="height:19.25pt"> <td rowspan="3"> <p style="text-align: center;"><span style="color:#000000;">Standard accessories</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">7.5KW water-cooled vacuum pump</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> <tr style="height:19.25pt"> <td> <p style="text-align: center;"><span style="color:#000000;">2</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW double barrel dust collector</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> <tr style="height:19.25pt"> <td> <p style="text-align: center;"><span style="color:#000000;">3</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Tool box</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> </tbody> </table> <p><em><span style="color:#000000;">*For different industries, HONZHAN CNC router can be equipped with different functions to meet the requirements of different users.</span></em></p> <p><span style="color:#000000;">4. ATC CNC Router Detail Images:</span></p> <p><strong><span style="color:#000000;">ATC CNC Router with 9KW air cooled spindle, vacuum table, dust collector:</span></strong></p> <p><img border="0" src="/static/upload/20736b48ae8dc227/33c2ff455dd53463.jpg" title="image" /></p> <p><img border="0" src="/static/upload/545939a1effe71f9/7837952378b9004c.jpg" title="image" /></p> <p><img border="0" src="/static/upload/9ff8f36601f21439/7703bdf4f211aa67.jpg" title="image" /></p> <p><strong><span style="color:#000000;">ChangChuan CC 9KW Automatic tool changer spindle:</span></strong></p> <p><img border="0" src="/static/upload/680830705058cb7a/80cafc945cbe362a.jpg" title="image" /></p> <p><strong><span style="color:#000000;">Taiwan Syntec windows control system:</span></strong></p> <p><img border="0" src="/static/upload/5edf9be41276e8e9/df29783f988b8629.jpg" title="image" /></p> <p><strong><span style="color:#000000;">Carousel 12 tools magazine automatic tool changer:</span></strong></p> <p><img border="0" src="/static/upload/4a1dc940f1203a9f/50320dd0084e55d8.jpg" title="image" /></p> <p><span style="color:#000000;"><strong>5. ATC CNC Router cutting samples show: Wooden door, furniture, wardrobe CNC Cutting Machine:</strong></span></p> <p><img border="0" src="/static/upload/6e6438c034bfceee/26ceaef1ef78fcd9.jpg" title="image" /></p> <p><span style="color:#000000;">This is our factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</span></p> <p><img border="0" src="/static/upload/ba771ce4c6b29d08/2a9fe542594ee662.jpg" title="image" /></p> <p><img border="0" src="/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p>
