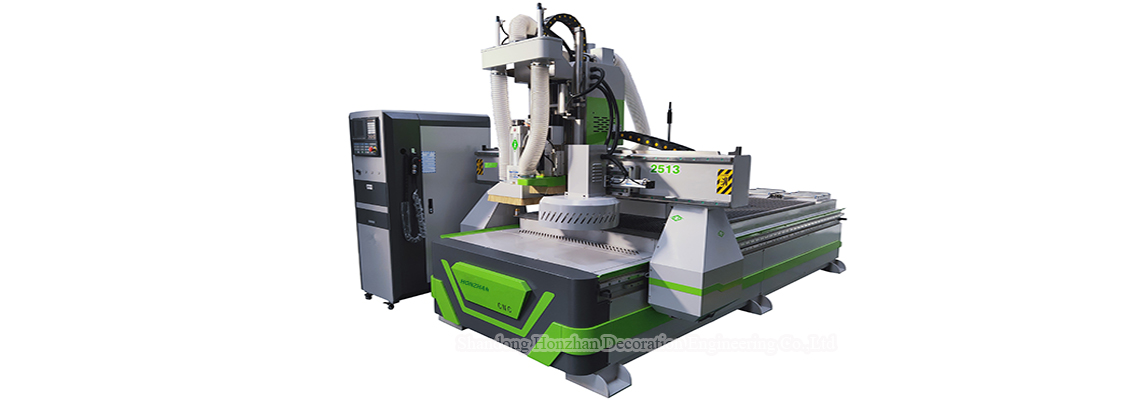

<p>HZ-ATC1325M ATC CNC Router Machining centers with Routing Nesting Drilling function</p> <p><strong>1. Application materials:</strong><br /> 1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.<br /> Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet.<br /> 2). Wood products: game cabinets, computer tables, sewing tables, musical instruments, bookcase, entrance cabinet, display cabinet, medicine cabinet, wooden speaker<br /> 3). Decoration industry: Acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and soft metal such as copper and aluminum.<br /> This CNC router have automatic tool changer, automatic vacuuming, automatic positioning, automatic oiling functions. Applicable to many kinds of wood boards&#39; plane milling, engraving, hollowing, cutting, 3D relief etc diversified processing.</p> <p><strong>2. CNC Router Feature:</strong><br /> 1). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.<br /> 2). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.<br /> 3). High quality vacuum adsorption platform, help achieve the perfect cutting effect. Can perfectly realize special-shaped cutting, small-cut cutting, and the minimum cutting plate can reach 25mm.<br /> 4). Good dust collector effect, can take away 95% dust, keep clean working environment.<br /> 5). Safety intelligence, with intelligent processing and cross-border protection, prevent mechanical collisions caused by processing size exceeding design layout.<br /> 6). CNC machine use computer control, simple operation, greatly improving work efficiency.</p> <p><strong>3. Technical parameters:</strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:solid windowtext 1.0pt;"> <tbody> <tr> <td colspan="4"> <p><span style="color:#000000;">Machine: HZ-ATC1325M ATC CNC Router Machining centers with Routing Nesting Drilling function</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p><span style="color:#000000;">Model</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">HZ-ATC1325M</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Platform size</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">1300*2550mm</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Work area(X,Y,Z)</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Travelling speed</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">60m-80m/min (MAX)</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p><span style="color:#000000;">Working speed</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">20m/min (MAX) </span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Working voltage </span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">AC380V/3PH/50HZ</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Spindle power</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">ChangChuan CC 9KW Automatic tool changer spindle (24000RPM/min speed)</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p><span style="color:#000000;">Boring head</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">ChangChuan CC 9 boring head (Vertical Drilling)</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Tools magazine</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Carousel 12 tools magazine automatic tool changer</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Device architecture</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">De-stressing and finishing milling, one molding process,</span></p> <p style="text-align: center;"><span style="color:#000000;">Anti-jamming independent cabinet, high structural stability and small deformation</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p><span style="color:#000000;">Driving system </span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Leadshine servo motor and driving system</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Transmission parts</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Alloy hardened Rack and pinion, TBI Ball screw transmission and Hiwin linear rail</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Operating system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Taiwan Baoyuan operate system</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Positioning method</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">High precision automatic positioning cylinder</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p><span style="color:#000000;">Countertop structure</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Vacuum adsorption platform</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Inverter</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Delixi brand 11KW high precision inverter</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Lubrication system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Automatic Oil pump centralized lubrication control</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Security system</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">Overtravel protection, electrical protection</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p><span style="color:#000000;">Dust collector</span></p> </td> <td colspan="3"> <p style="text-align: center;"><span style="color:#000000;">High power automatic dust collector with dust collector hood</span></p> </td> </tr> <tr style="height:19.25pt"> <td rowspan="3"> <p><span style="color:#000000;">Standard accessories</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">7.5KW water-cooled vacuum pump</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> <tr style="height:19.25pt"> <td> <p style="text-align: center;"><span style="color:#000000;">2</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW double barrel dust collector</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> <tr style="height:19.25pt"> <td> <p style="text-align: center;"><span style="color:#000000;">3</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Tool box</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1 set</span></p> </td> </tr> </tbody> </table> <p><em>*For different industries, HONZHAN CNC router can be equipped with different functions to meet the requirements of different users.</em></p> <p><strong>4. Vertical Drilling ATC CNC Router Detail Images:</strong></p> <p>Automatic Tool Changer Woodworking CNC Router Center with Vertical Drilling</p> <p><img border="0" src="/static/upload/4156807cec24531a/99998045441ee5c3.jpg" title="image" /></p> <p><img border="0" src="/static/upload/8165b4f221e9a1af/9be25b8e9ad62b28.jpg" title="image" /></p> <p><img border="0" src="/static/upload/973d5a9e053e8f15/4b5c8ba43e45dacd.jpg" title="image" /></p> <p>9KW Air cooling ATC Spindle and Boring Head for Wood Working, and Carousel 12 tools magazine</p> <p>CNC Router with CC Spindle,CC 5+4 Vertical drilling, Disc auto tool changing</p> <p><img border="0" src="/static/upload/a59b2ff9b95ce076/51ef61717c015850.jpg" title="image" /></p> <p>TaiwanWeiHong windows control system, can optional <span style="color:#000000;">Taiwan Baoyua, Taiwan Syntec windows control system</span></p> <p><img border="0" src="/static/upload/39861850345e6138/e1cb9590714edc2d.jpg" title="image" /></p> <p><strong>5. ATC CNC Router Center cutting samples show: Furniture, door carving and cutting</strong></p> <p><strong><img border="0" src="/static/upload/6e6438c034bfceee/26ceaef1ef78fcd9.jpg" title="image" /></strong></p> <p>This is our factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</p> <p><img border="0" src="/static/upload/ba771ce4c6b29d08/2a9fe542594ee662.jpg" title="image" /></p> <p><img border="0" src="/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p>
