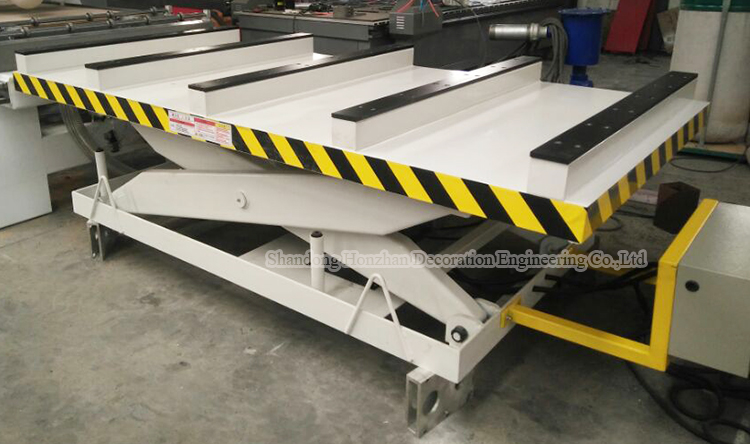

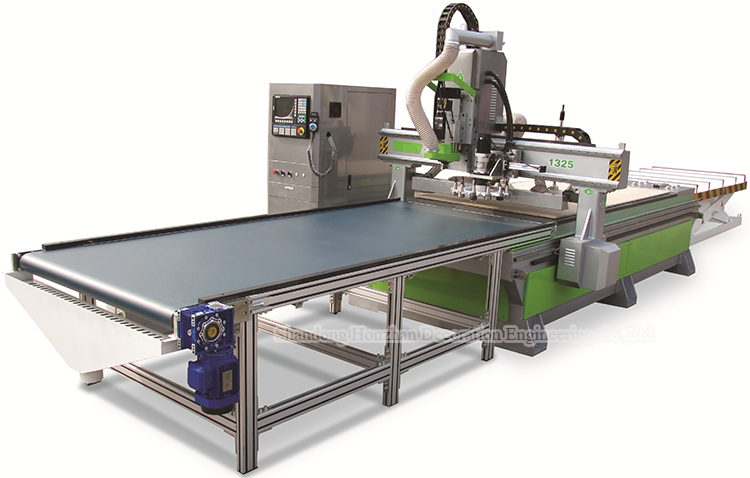

HZ-ATC1325BD ATC CNC Router with Automatic Loading and Unloading System

1. Application materials:
1). Furniture: wooden doors, solid wood furniture, tables, chairs, windows.
Plate-type furniture, custom furniture, office furniture, wooden cabinet wardrobe , closet door, MDF wood doors, craft wooden door, paint free door, TV cabinet, computer table, bedside table, shoe cabinet, wooden kitchen cabinet。
2). Wood products: game cabinets, computer tables, sewing tables, musical instruments, bookcase, entrance cabinet, display cabinet, medicine cabinet, wooden speaker
3). Decoration industry: Acrylic, PVC, MDF, artificial stone, plexiglass, plastic, and soft metal such as copper and aluminum
This CNC router have automatic tool changer, automatic vacuuming, automatic positioning, automatic oiling functions. Applicable to many kinds of wood boards' plane milling, engraving, hollowing, cutting, 3D relief etc diversified processing.

2. CNC Router Performance Characteristics:
1). Machining center engraving machine, intelligent control system, automatically select and replace tools, automatically change spindle speed, machine running speed, The tool magazine can be equipped with multiple tools to process complex process products, which greatly improves production efficiency.
2). With breakpoint power and continuous engraving, power failure recovery, processing time prediction and other functions. Humanized design and perfect oil lubrication system greatly extend the service life of the machine.
3). High quality vacuum adsorption platform, help achieve the perfect cutting effect. Can perfectly realize special-shaped cutting, small-cut cutting, and the minimum cutting plate can reach 25mm.
4). Good dust collector effect, can take away 95% dust, keep clean working environment.
5). Safety intelligence, with intelligent processing and cross-border protection, prevent mechanical collisions caused by processing size exceeding design layout.
6). CNC machine use computer control, simple operation, greatly improving work efficiency.

3. Technical parameters:

HZ-ATC1325BD ATC CNC Router with Automatic Loading and Unloading System
Model	HZ-ATC1325BD
Platform size	1300*2550mm
Work area(X,Y,Z)	13002500200mm
Travelling speed	60m-80m/min (MAX)
Working speed	20m/min (MAX)
Working voltage	AC380V/3PH/50HZ
Spindle power	ChangChuan CC 9KW Automatic tool changer spindle (24000RPM/min speed)

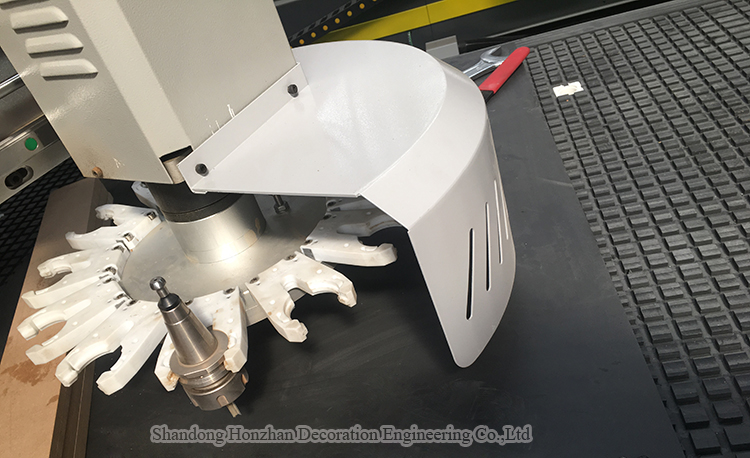

Tools magazine	Carousel 12 tools magazine automatic tool changer
Device architecture	De-stressing and finishing milling, one molding process, Anti-jamming independent cabinet, high structural stability and small deformation
Driving system	Leadshine servo motor and driving system
Transmission parts	Alloy hardened Rack and pinion, TBI Ball screw transmission and Hiwin linear guide

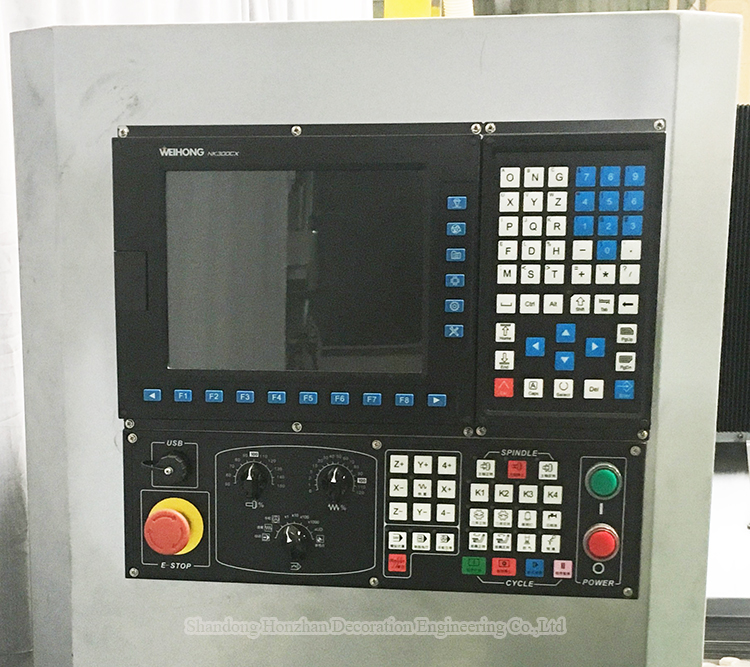

Operating system	Weihong windows operate system, optional TaiWan Baoyuan operate system
Positioning method	High precision automatic positioning cylinder
Countertop structure	Vacuum adsorption platform
Inverter	Delixi brand 11KW high precision inverter
Lubrication system	Automatic Oil pump centralized lubrication control
Security system	Overtravel protection, electrical protection
Dust collector	High power automatic dust collector with dust collector hood
Standard accessories	1	7.5KW water-cooled vacuum pump	1 set
	2	5.5KW double barrel dust collector	1 set
	3	Tool box	1 set

*For different industries, HONZHAN CNC router can be equipped with different functions to meet the requirements of different users.

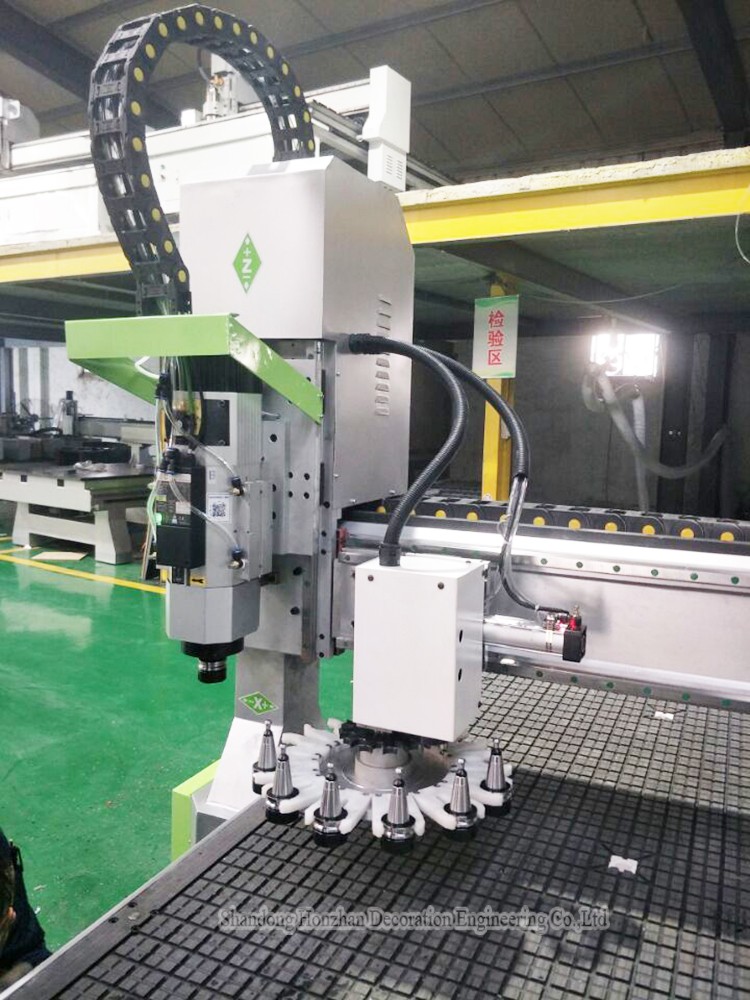

4. ATC CNC Router detail images:

5. Wood furniture doors ATC CNC Router Center cutting samples show:

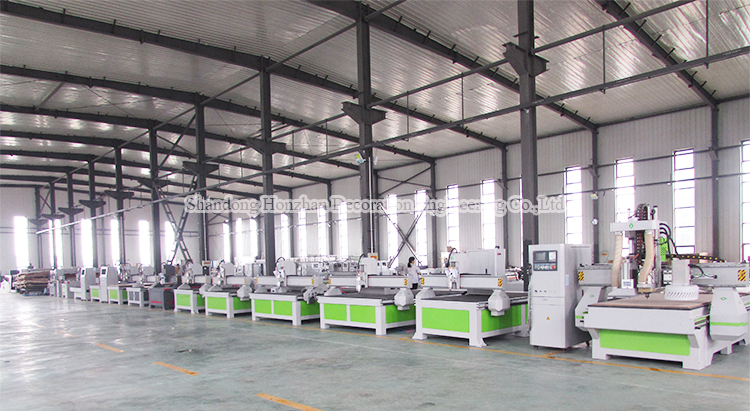

This is our factory, we always adhere to the principle of quality first, quality win the market.
Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.
