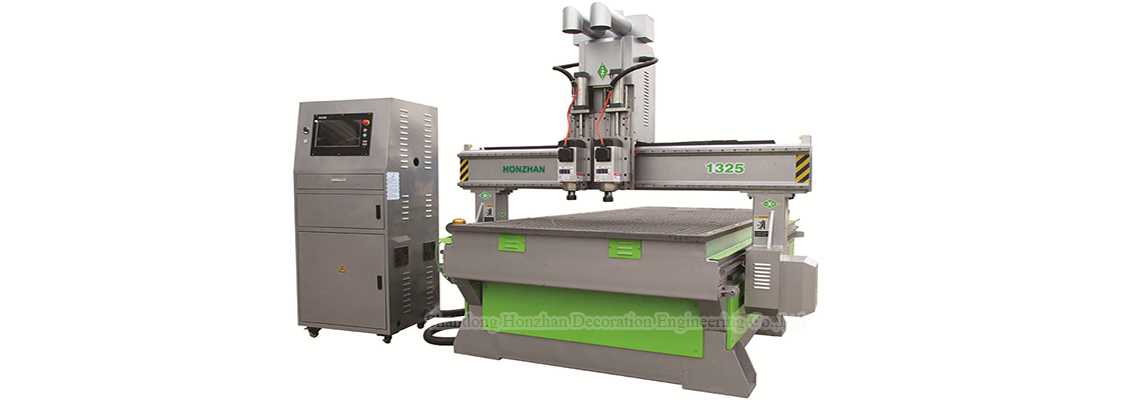

<p>HZ-R1325 Two Spindles CNC Router 4*8ft with Vacuum Table</p> <p><strong>1. Application materials:</strong></p> <p><span style="color:#000000;">1). Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.<br /> 2). The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.<br /> 3). Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.<br /> 4). Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.</span></p> <p><span style="color:#000000;">Wood cnc router has two heads (two Pneumatic Air Cooling Spindles), which work one by one. When finish carving with one head at first, the other head will cut down the designs automatically to save time of changing tool, high working efficiency. </span></p> <p><strong>2. Two Spindles CNC Router Product Features:</strong></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">1). The machine bed is made of 8mm thickness square steel tube, very strong and stable. </span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">2). High power 6Kw air cooling spindle have functions of carving, milling, drilling and cutting.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">3). High precision Taiwan HIWIN or PMI linear guide rail ensure machine work fast and smoothly.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">4). Machine use computer windows control system, which has breaking point memory function to ensure continuous operation after electricity cut.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">5). Professional flexible cables can prevent signal interference from neighbor cables.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">6). Automatic oil lubrication system for linear guide, it also can resistant to dust in XY axis, making it easy to maintain.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><span style="color:#000000;"><span style="font-size:10.5pt"><span style="font-family:等线">7). We deliver CNC router machines with ArtCAM software. which can use for design patterns and transfer them to NC code, then use CNC control system to cut, drilling and carving.</span></span></span></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><strong>3. Technical parameters:</strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:solid windowtext 1.0pt;width:435.1pt;" width="580"> <tbody> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Model</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">HZ-R1325 Two Spindles CNC Router 4*8ft with Vacuum Table</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Working size</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> </tr> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Max feeding height</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">200mm</span></p> </td> </tr> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Max traveling speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">15m/min</span></p> </td> </tr> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Tools diameter</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">φ3.175, φ4, φ6, φ8, φ12.7</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Transm1ss1on</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">X.Y: rack and pinion, Z axis : ball screw</span></p> </td> </tr> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Software environment</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Windows 7 and up (not compatible with MAC)</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Spindle power</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">6KW HQD air cooling spindle, optional 5.5KW</span></p> </td> </tr> <tr style="height:27.2pt"> <td> <p><span style="color:#000000;">Spindle speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">24000rpm/min</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Control system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Shanlong Windows operate system, optional Weihong or Syntec</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Recognizing language</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">G code (nc), mmg, plt, eng, dxf</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Motor</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Stepper motor, optional servo motor</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Oiler </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Linear Guide Auto Oil Lubrication</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">X,Y,Z axis Transmission</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Taiwan HINWIN/PMI linear guide and High precision helical rack gear</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Table</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">T-slot and vacuum table</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Vacuum pump power</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">7.5KW</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Inverter</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Best inverter, optional Fuling/Delta brand inverter</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Dust collector</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW double barrel dust collector</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Power without spindle</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5KW</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p><span style="color:#000000;">Voltage</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">220V/380V, optional 110V</span></p> </td> </tr> </tbody> </table> <p>*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users.</p> <p><strong>4. Two Spindles CNC Router Detail Images:</strong></p> <p><strong><img border="0" src="/static/upload/9f4e42e27257342d/d7dd8e7b00492bdb.jpg" title="image" /></strong></p> <p><strong><img border="0" src="/static/upload/5152a033f550cb3e/a53a8edca67507df.jpg" title="image" /></strong></p> <p>Shanlong Windows Control System (English Language), Vacuum table and Height sensor block, Good quality linear guide and Rack:</p> <p><img border="0" src="/static/upload/f5f470050ff3810c/bd2eeb070e38b738.jpg" title="image" /></p> <p><strong>5. Two Spindles CNC router cutting samples show:</strong></p> <p><img border="0" src="/static/upload/b4b6fbaf03c1ffff/11a67042b69260a7.jpg" title="image" /></p> <p>This is our factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</p> <p><img border="0" src="/static/upload/6b723124cf049204/159bab2f636aee94.jpg" title="image" /></p>
