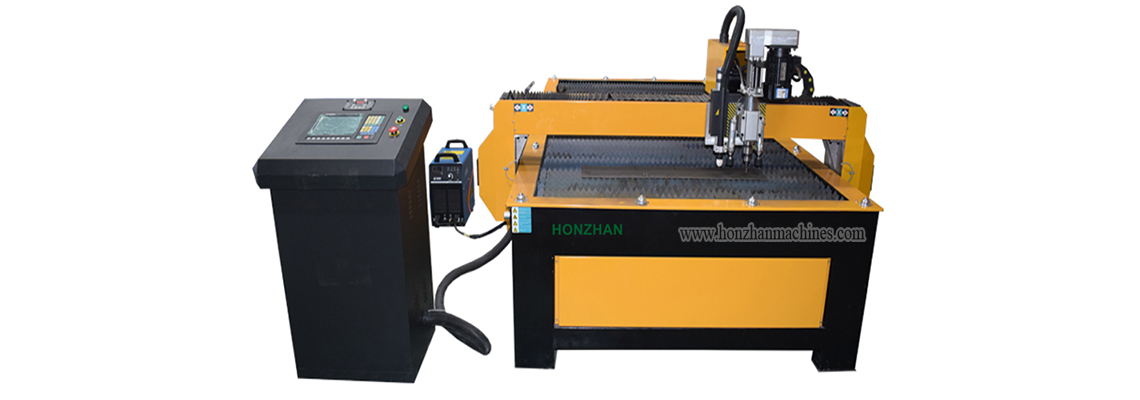

HZ-P1530 Metal Plasma Cutting Machine with Drill Head for Metal, Steel, SS, CS Cutting HZ-P1530 CNC Plasma Cutting Machine is equipped with a drill head. It can not only cut metal but drill holes on metal as well. 1. Applicable materials: Honzhan Plasma Cutting Machine is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, stainless steel and other metal sheet. Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting. 2. Machine features: 1). Honzhan HZ-P1530 Plasma Cutting Machine with Drill Head, can cut all kinds of metal like carbon steel, stainless steel, mild steel ,aluminum, copper, bronze. Cutting thickness can be up to 35mm. This metal plasma cutter can be compatible with all kinds of plasma source like USA Hypertherm Powermax45 Powermax65 Powermax85 Powermax105 Powermax125 Powermax200 and Chinese Huayuan LGK63 LGK100 LGK120 LGK160 LGK200. 2). Hypertherm plasma power supply together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting. Optional Chinese brand Huayuan plasma source. 3). Greater cutting speed, more accurate control, smoother cutting surface, no deburring, no black and high quality hole cutting. 4). Honzhan Plasmas Cutting Machine welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy. 5). Stability and reliability of the optical system and the control system 6). High cutting efficiency, high quality and no noise. Small thermal zones, smooth cracks, no deformation, no post-processing required. 7). The overall stepper motor uses a high precision rack and pinion to ensure that the CNC plasma system has a low, smooth and precise coordinate movement. 8). Excellent software compatibility such as Fastcam, Starcam. Plasma cutting for aluminum, stainless steel use STARFIRE control system with FastCAM software or StarCam software with nesting function can auto saving material easily, large capacity storing function, convenient to read and process. 9). Optional use cutting head with cooling system, can quickly cool surface of material to avoid burr and residue 10). Cables: Imported German cables, custom-made imported materials for the production of wire and cable, maximizing the service life of the machine. 3. Technical parameters: <table border="1" class="Table" style="background:white;border-collapse:collapse;width:650px;" width="100%"> <tbody> <tr> <td colspan="2"> Name: HZ-P1530 Metal Plasma Cutting Machine with Drill Head </td> </tr> <tr> <td style="width: 170px;"> Working size (X Y axis) </td> <td> 1500*3000mm </td> </tr> <tr> <td> Power source </td> <td> Hypertherm / Huayuan plasma power supply </td> </tr> <tr> <td> Cut materials thickness </td> <td> 0-30mm </td> </tr> <tr> <td> Travelling speed </td> <td> 0-20000mm/min（MAX） </td> </tr> <tr style="height:3.25pt"> <td> Working speed </td> <td> 0-16000mm/min（MAX） </td> </tr> <tr style="height:3.25pt"> <td> Plasma Unit Max </td> <td> 5.5KW </td> </tr> <tr style="height:3.25pt"> <td> Positioning accuracy </td> <td> ±0.3mm </td> </tr> <tr> <td> Working voltage </td> <td> AC380V/3PH/50HZ </td> </tr> <tr> <td> Plasma current </td> <td> 63A </td> </tr> <tr> <td> Plasma power source </td> <td> According to materials cutting thickness, generally use 100A power source </td> </tr> <tr> <td> Arc </td> <td> Untouched arc striking </td> </tr> <tr> <td> Software support </td> <td> FASTCAM plasma software </td> </tr> <tr> <td> Files transfer </td> <td> USB interface </td> </tr> <tr> <td> Instruction format </td> <td> G code </td> </tr> <tr> <td> Work Countertop </td> <td> Serrate working platform </td> </tr> <tr> <td> Working pressure </td> <td> 0.3-0.7Mpa </td> </tr> <tr> <td> Machine architecture </td> <td> One-step molding for stress-relief fine milling, six-legged bed, two funnels under the bed, with trays. The quartet anti-interference independent cabinet has stable structure, high accuracy and small deformation. </td> </tr> <tr> <td> Drive system </td> <td> XYZ: stepper motor and DMA860 drive </td> </tr> <tr> <td> Gear rack </td> <td> 1.25M alloy hard toothed helical rack + alloy hard toothed helical gear </td> </tr> <tr> <td> Linear guide </td> <td> 20 linear guide rail </td> </tr> <tr> <td> operating system </td> <td> Beijing STARFIRE </td> </tr> <tr> <td> Arc Height controller </td> <td> HYD THC Height Control </td> </tr> <tr> <td> Lifting body </td> <td> Lifting body stroke 130 with anti-collision body </td> </tr> <tr> <td> Oiler </td> <td> Lubrication system with oil pump </td> </tr> <tr> <td> Fan </td> <td> Standard equipped with two fans 220V Single Phase 50HZ, each with 4 meters pipe </td> </tr> <tr> <td> Power cable </td> <td> Custom high-speed shielded cable, Anti-interference and anti-break </td> </tr> <tr> <td> Security system </td> <td> Overtravel protection / safety cover / electrical protection, etc. </td> </tr> <tr> <td> Quality Control </td> <td> 24-hour machine working inspection experiment before delivery </td> </tr> <tr> <td> Machine Dimension (L*W*H) </td> <td> 3000*2520*1540mm </td> </tr> <tr> <td> Weight </td> <td> Net weight: 1800kg, Gross weight: 2200kg </td> </tr> </tbody> </table> *For different industries, HONZHAN Plasma Cutting Machine can be equipped with different configurations to meet the requirements of different users. 4. Plasma Cutting Machine with Drill Head Detail Images: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (12).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (1).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (2).jpg" title="image" /> Honzhan Plasma cutting torch combined with drill head. Because many customers want to drill holes before cutting metal down, we supply this solution. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (3).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (9).jpg" title="image" /> Heavy-duty machine bed made of 8mm-thickness square steel tubes .It can load very thick metal sheet up to 35mm.Loading capability is 2500kg. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (4).jpg" title="image" /> High quality Taiwan HIWIN guide rail can keep high cutting precision and ensure machine move smoothly. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (6).jpg" title="image" /> Humanized STARFIRE controller is easy to learn and operate and few error appears. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (8).jpg" title="image" /> After setting parameters on torch height controller, cutting torch will go up and down automatically according to permanent distance away from the surface of metal sheet. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (7).jpg" title="image" /> Toothed slat table can decrease damage from plasma cutting torch, so Honzhan plasma cutting machines have a longer life-time. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Metal Plasma Cutter (5).jpg" title="image" /> 5. Plasma and Flame Cutting Machine Cutting Samples Show: Machine can cut carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, stainless steel and other metal sheet. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Cutting Machine.jpg" title="image" />
