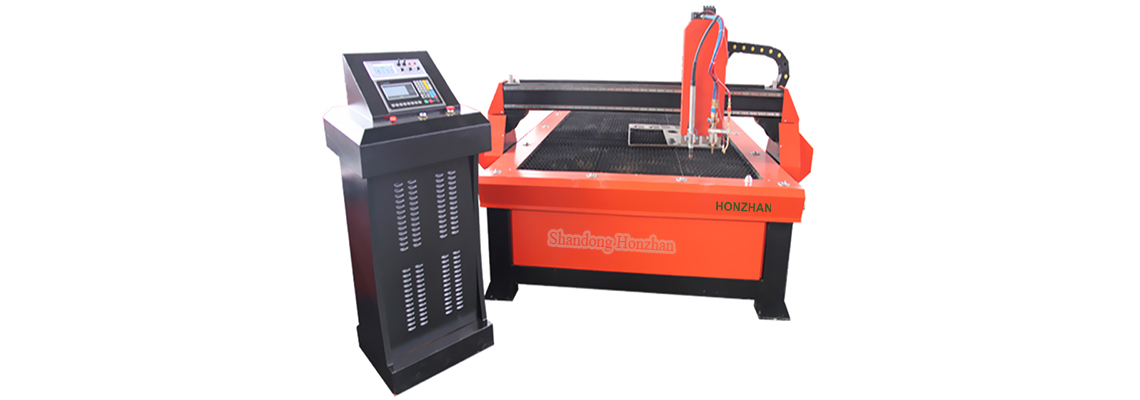

HZ-P1325F P1530F Plasma and Flame Cutting Machine for metal, steel, SS, CS, MS Plasma cutting machine is a cnc machine used for cutting all kinds of metals. We also call it plasma cutter, cnc plasma table, metal plasma cutter, cnc metal cutter, 4x8ft plasma table, 5x10ft plasma table. We usually equip it with Chinese Huayuan or USA Hypertherm plasma source to cut 0~30mm thickness metal. If more than 30mm thickness, we advise use plasma and flame cutting machine, to add flame torch to cut thicker metals. 1. Applicable materials: Honzhan Plasma and Flame Cutting Machine is suitable for carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, stainless steel and other metal sheet. Application industry: it is widely used for processing shells of machinery and electronic products, advertising signs, crafts, iron garden, car manufacture, boat building, electrical accessories, board cutting. 2. Machine features: 1). Welded structure of thickening square tube, together with Taiwan imported guide rail to ensure running speed and accuracy. 2). Hypertherm plasma power supply together with high sensitive arc pressure adjuster. Self-adjusting can choose the best distance between plasma gun and working piece automatically to ensure high accuracy cutting. 3). CNC plasma cutting for aluminum, stainless steel use STARFIRE control system with FastCAM software for auto material saving function, large capacity storing function, convenient to read and process. 4). Cutting head with cooling system can quickly cool surface of material to avoid burr and residue. 5). Overall stepper motor with high precision rack and pinion, to ensure the cnc plasma. Machine has small noise, smooth, precise coordinates of the mobile performance. 6). Perfect software compatibility, such as Ucancam,Type 3, Artcum etc. Advantage of HONZHAN Plasma and Flame Cutting Machine: 1). Cutting faster, more accurate control, the cutting surface is more smooth, no glitches, no black; cutting holes in high quality 2). Stability and reliability for light path system and control system 3). Humanizing design, convenient operation 4). High performance price ratio, low operating cost 5). High cutting efficiency and quality, no noisy. Small heat influence area, cutting seam smooth and no deformation, post treatment is not needed. 6). The machine adopt Beijing STARFIRE plasma control system, standard high sensitivity arc voltage device. 7). Honzhan Plasma and Flame cutting machine use high precision stepper motor and driver, ensure the efficiency and accuracy, increasing the stability and reliability greatly. 3. Technical parameters: <table border="1" class="Table" style="background:white;border-collapse:collapse;width:650px;" width="100%"> <tbody> <tr> <td colspan="2"> Name: HZ-P1325F P1530F Plasma and Flame Cutting Machine </td> </tr> <tr> <td style="width: 170px;"> Working size (X Y axis) </td> <td> 1300*2500mm / 1500*3000mm </td> </tr> <tr> <td style="width: 170px;"> Power source </td> <td> Hypertherm / Huayuan plasma power supply </td> </tr> <tr> <td style="width: 170px;"> Travelling speed </td> <td> 0-20000mm/min（MAX） </td> </tr> <tr style="height:3.25pt"> <td style="width: 170px;"> Working speed </td> <td> 0-16000mm/min（MAX） </td> </tr> <tr style="height:3.25pt"> <td style="width: 170px;"> Plasma Unit Max </td> <td> 5.5KW </td> </tr> <tr style="height:3.25pt"> <td style="width: 170px;"> Positioning accuracy </td> <td> ±0.3mm </td> </tr> <tr> <td style="width: 170px;"> Working voltage </td> <td> AC380V/3PH/50HZ or 60HZ </td> </tr> <tr> <td style="width: 170px;"> Plasma current </td> <td> 63A </td> </tr> <tr> <td style="width: 170px;"> Plasma power source </td> <td> According to materials cutting thickness, generally use 100A power source </td> </tr> <tr> <td style="width: 170px;"> Arc </td> <td> Untouched arc striking </td> </tr> <tr> <td style="width: 170px;"> Software support </td> <td> FASTCAM plasma software </td> </tr> <tr> <td style="width: 170px;"> Files transfer </td> <td> USB interface </td> </tr> <tr> <td style="width: 170px;"> Instruction format </td> <td> G code </td> </tr> <tr> <td style="width: 170px;"> Work Countertop </td> <td> Serrate working platform </td> </tr> <tr> <td style="width: 170px;"> Working pressure </td> <td> 0.3-0.7Mpa </td> </tr> <tr> <td style="width: 170px;"> Machine architecture </td> <td> One-step molding for stress-relief fine milling, six-legged bed, two funnels under the bed, with trays. The quartet anti-interference independent cabinet has stable structure, high accuracy and small deformation. </td> </tr> <tr> <td style="width: 170px;"> Drive system </td> <td> XYZ: stepper motor and DMA860 drive. Optional Servo motor </td> </tr> <tr> <td style="width: 170px;"> Gear rack </td> <td> 1.25M alloy hard toothed helical rack + alloy hard toothed helical gear </td> </tr> <tr> <td style="width: 170px;"> Linear guide </td> <td> 20 linear guide rail </td> </tr> <tr> <td style="width: 170px;"> operating system </td> <td> Beijing STARFIRE </td> </tr> <tr> <td style="width: 170px;"> Lifting body </td> <td> Lifting body stroke 130 with anti-collision body </td> </tr> <tr> <td style="width: 170px;"> Oiler </td> <td> Lubrication system with oil pump </td> </tr> <tr> <td style="width: 170px;"> Fan </td> <td> Standard equipped with two fans 220V Single Phase 50HZ, each with 4 meters pipe </td> </tr> <tr> <td style="width: 170px;"> Power cable </td> <td> Custom high-speed shielded cable, Anti-interference and anti-break </td> </tr> <tr> <td style="width: 170px;"> Security system </td> <td> Overtravel protection / safety cover / electrical protection, etc. </td> </tr> <tr> <td style="width: 170px;"> Quality Control </td> <td> 24-hour machine working inspection experiment before delivery </td> </tr> <tr> <td style="width: 170px;"> Machine Dimension (L*W*H) </td> <td> 3000*2520*1540mm </td> </tr> <tr> <td style="width: 170px;"> Weight </td> <td> Net weight: 1800kg, Gross weight: 2200kg </td> </tr> </tbody> </table> *For different industries, HONZHAN Plasma Cutting Machine can be equipped with different configurations to meet the requirements of different users. 4. Plasma and Flame Cutting Machine Detail Images: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Flame Cutting Machine (2).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Flame Cutting Machine (3).jpg" title="image" /> Auxiliary wheels at the 4 sides of machine table let loading and unloading materials become easy. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Flame Cutting Machine (5).jpg" title="image" /> 1). Automatic THC torch height controller can drive cutting torch go up and down according to material's surface. It can keep the same distance between surface of material and top of torch, because metal sheet is usually not flat. 2). Sawtooth slats have been blackening treated, not easy to be rusty, so they have longer lifetime. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Flame Cutting Machine (4).jpg" title="image" /> STARFIRE Operating System and Arc Height Controller <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Cutter.jpg" title="image" /> Tidy electronic cable connection. Every cable has labels, if there is error, easy to find it. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Honzhan Plasma Cutter.jpg" title="image" /> 5. Plasma and Flame Cutting Machine Cutting Samples Show: carbon steel, copper, iron, aluminum and galvanized sheet, titanium sheet, stainless steel and other metal sheet. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191229/Plasma Flame Cutting Machine (6).jpg" title="image" />
