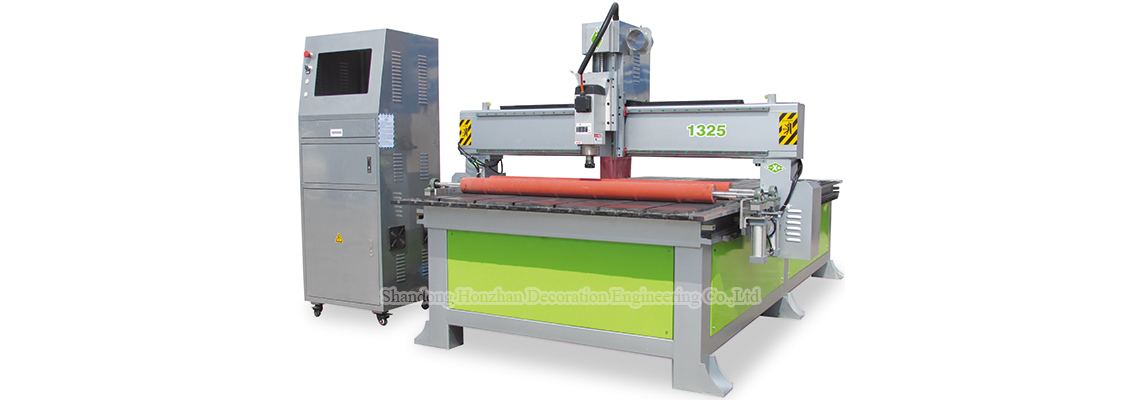

<p><span style="color:#000000;">HZ-R1325 Wood CNC Router with Presser (Pressure roller)</span></p> <p><span style="color:#000000;"><strong>1. Applicable of woodworking cnc router:</strong><br /> Woodworking industry: three-dimensional wave board processing, cabinet doors, solid wood doors, <br /> craft wooden doors, paint-free doors, screens, craft fans, game consoles cabinets and panels, mahjong tables, computer tables and panel furniture products.<br /> Advertising industry: the production of advertising signs, logo production, acrylic cutting, plastic molding, and a variety of materials advertising decorative products.<br /> Mold industry: It can engrave metal molds such as copper, aluminum and iron, <br /> as well as non-metal molds such as artificial marble, sand stone, plastic board, PVC pipe and wood board.<br /> Other industries: It can engrave all kinds of large reliefs and shadow carvings, which are widely used in the craft gift industry.</span></p> <p><span style="color:#000000;"><strong>2. cnc router machine configurations:</strong><br /> 1). It adopts imported linear square guide rails and double row and four rows of ball slides. <br /> It has large bearing capacity, stable operation, high precision and long service life.<br /> 2). Machine use imported ball screw has high precision and accurate cutting.<br /> 3). The use of air-cooled spindle, work with AC servo motor runs fast and have high power.<br /> 4). Software compatibility, compatible with a variety of CAD / CAM design and production software such as type3 / Artcam / Castmate / UcancamV9.<br /> 5). Machine is equipped with pressure roller, which can be fixed for various sizes of materials. <br /> The distance between the two pressure rollers can be adjusted at will, the large-area cutting hollow can be used, the small cutting work can also be performed.<br /> 6). Using high-speed stepper motor and driver, the Y-axis is driven by a dual motor, <br /> so that it can run at high speed of up to 35 m/min. With strong cutting spindle, the engraving speed can be improved.</span></p> <p><strong><span style="color:#000000;">3. Main Parameters:</span></strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:solid windowtext 1.0pt;" width="567"> <tbody> <tr style="height:32.0pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Model</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">HZ-R1325 CNC Router with Pressure roller</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Optional</span></p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Working size</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">customizable</span></p> </td> </tr> <tr style="height:32.0pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Machine structure</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Steel structure bed, PVC profile countertop</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Square tube structure bed / vacuum table</span></p> </td> </tr> <tr style="height:32.0pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Machine size</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">1950*3100*1650mm</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:32.0pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Spindle power</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">4.5KW air cooled spindle</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Designated power / water cooled / multi-head</span></p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Maximum working speed</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">20m/min</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:32.0pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Operating Voltage</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">AC380V, 50HZ</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">AC220V, 50HZ / AC110V, 60HZ</span></p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">operating system</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Weihong NC studio CNC system</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">DSP controller or designated system</span></p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Motor</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Hybrid servo motor</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Stepper motor / servo motor</span></p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Engraving instruction</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">G code, HPGL, U00, mmg, plt</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Transmission mode</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">X Y axis rack drive, Z-axis ball screw drive</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Material fixing</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Clamp platen, pneumatic pressure roller</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Running track</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Three-axis imported linear guide</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:30.7pt"> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Available tool</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"><span style="color:#000000;">Φ3.175-φ12.7</span></p> </td> <td style="height: 10px;"> <p style="text-align: center;"> </p> </td> </tr> </tbody> </table> <p><span style="color:#000000;"><em>*For different industries, HONZHAN CNC router can be equipped with different functions to meet the requirements of different users.</em></span></p> <p><strong><span style="color:#000000;">4. Detail images:</span></strong></p> <p>Wood Router with Pressure Roller:</p> <p><img border="0" src="/static/upload/1e7b70ec20ca1bd3/954fcb106cdca0d1.jpg" title="image" /></p> <p><img border="0" src="/static/upload/a8b301ec3fb3a924/955fa0b44a4ec6c5.jpg" title="image" /></p> <p><img border="0" src="/static/upload/b8a574e2a6c9ab81/767f5bbe4f04e70b.jpg" title="image" /></p> <p><img border="0" src="/static/upload/0e9ce6fc4ff256d8/27f7631efbe724bb.jpg" title="image" /></p> <p><img border="0" src="/static/upload/b276ebd8c388fdf4/45401f37b2004990.jpg" title="image" /></p> <p><strong><span style="color:#000000;">5. CNC router cutting samples show:</span></strong></p> <p><img border="0" src="/static/upload/ed4ff6e8f719cc42/f24a2e658ac85426.jpg" title="image" /></p> <p><span style="color:#000000;">This is our new factory, we always adhere to the principle of quality first, quality win the market.</span></p> <p><img border="0" src="/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p> <p><img border="0" src="/static/upload/ba771ce4c6b29d08/2a9fe542594ee662.jpg" title="image" /></p>
