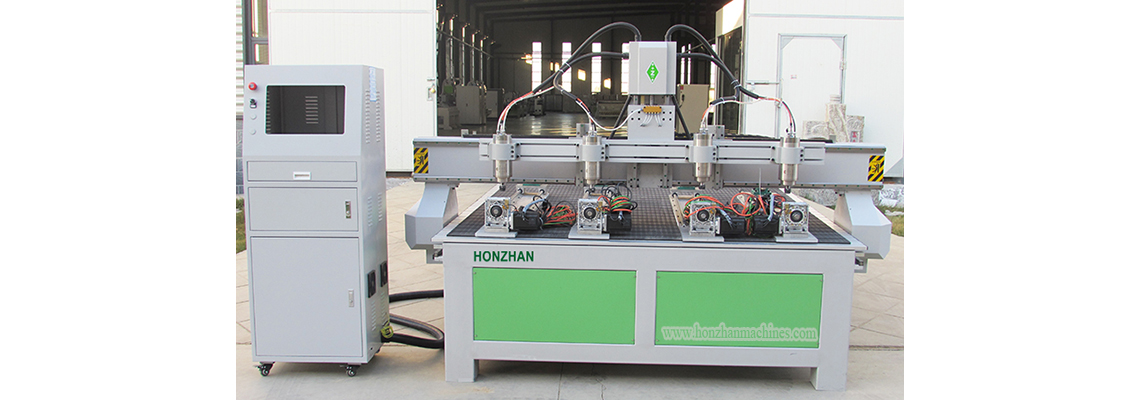

Big Size Multi-head 4 Spindles 4 Axis Cnc Router Machine with Rotary Axis HZ-R1530 R2030 R2040 cnc router has 4 spindles and its working size can be customized. The distances between each spindle can be changed. If you do bulk production, they can work at same time to get high efficiency. 1. CNC Router Applicable Materials: CNC Router with Rotary turning device, which makes workpiece turning during processing irregular cylinder carving, such as sculptures, furniture legs, stair handrails and so on. Suitable for carving and cutting three-dimensional column workpiece engraving of European antique solid wood furniture, stair railings and columns, Buddha statues, handicrafts, round wood, plastic models etc. Applicable to model production, wood boards, stone and hard objects in the material of the three-dimensional relief and line engraving, cutting, drilling, two-dimensional sculpture. Part of soft metal, plastic, insulation materials, PVC, acrylic and other materials. 2. Product Features: 1). Honzhan cnc machine realize the flat engraving with adding a platform over the rotary axis. 2). 3D rotating shaft device, can do flat engraving and cylindrical carving. 3). The machine can engrave four cylinder materials fixed on the rotary axis at one time, improving the processing efficiency. 4). Machine adopting true four-axis four-linkage control system, our CNC machine with better performance and wider processing range. 5). HONZHAN Machine body is strong made of thick welded steel tube, very heavy and stable. 6). HONZHAN Machine use Imported high-precision ball screw which moves smoothly to ensure high precision. 7). Good-performance driver and motor make sure the machine's high speed and accuracy. 8). Excellent mechanical and electrical design, use variety of electrical accessories, to reduce the failure rate to a minimum. 9). Machine has breakpoints, power off and continue carving function. With automatic return error correction function, it can effectively guarantee the machining accuracy when working for long time. 10). We delivery CNC router comes with ArtCAM software,which can design your patterns and transfer them to NC code, which can be used for cutting, drilling, carving. 11). We have already finished alignment before shipping. No need to install again when you receive cnc router machine. 3. Technical Parameters: <table border="1" class="Table" style="background:white;border-collapse:collapse;border:1pt solid windowtext;margin-left:5.65pt;width:650px;" width="567"> <tbody> <tr style="height:22.9pt"> <td> Model </td> <td> HZ-R1530 </td> <td> HZ-R2030 </td> <td> HZ-R2040 </td> </tr> <tr style="height:22.0pt"> <td> Working size </td> <td> 1500*3000*200mm </td> <td> 2000*3000*200mm </td> <td> 2000*4000*200mm </td> </tr> <tr style="height:22.9pt"> <td> Spindle </td> <td colspan="3"> 5.5KW*4 water cooled spindles, optional 3.2KW, 4.5KW, 6KW spindles </td> </tr> <tr style="height:22.9pt"> <td> Rotary device diameter </td> <td colspan="3"> 100mm ( Accept Customized) </td> </tr> <tr style="height:22.9pt"> <td> Spindle speed </td> <td colspan="3"> 6000-24000rpm/min </td> </tr> <tr style="height:22.9pt"> <td> Machine structure </td> <td colspan="3"> Steel structure bed, aluminum profile with PVC countertop, optional vacuum table </td> </tr> <tr style="height:22.9pt"> <td> Countertop material </td> <td colspan="3"> T slot table top and rotary axis </td> </tr> <tr style="height:22.9pt"> <td> Material fixing </td> <td colspan="3"> Use Fixture and rotary attachment </td> </tr> <tr style="height:22.9pt"> <td> Max traveling speed </td> <td colspan="3"> 60m/min </td> </tr> <tr style="height:27.2pt"> <td> Transmission </td> <td colspan="3"> High-precision helical rack gear </td> </tr> <tr style="height:27.2pt"> <td> Drive system </td> <td colspan="3"> Leadshine AC Hybrid Servo Drive </td> </tr> <tr style="height:27.2pt"> <td> Inverter </td> <td colspan="3"> DELIXI 5.5kw inverter, optional 7.5KW </td> </tr> <tr style="height:27.2pt"> <td> Control system </td> <td colspan="3"> NC studio/DSP/Mach3 </td> </tr> <tr style="height:27.2pt"> <td> Operating Voltage </td> <td colspan="3"> AC380V, 50HZ, optional AC220V, 50HZ / AC110V, 60HZ </td> </tr> <tr style="height:26.1pt"> <td> Recognizing language </td> <td colspan="3"> G code (nc), HPGL, U00, mmg, plt, eng, dxf </td> </tr> <tr style="height:26.1pt"> <td> Available tool </td> <td colspan="3"> Φ3.175, φ4, φ6, φ8, φ12.7 </td> </tr> </tbody> </table> *For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users. 4. CNC Router Detail Images: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Multi-head Cnc Router Machine with 4 Spindles Rotary Axis (3).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Cnc Router Machine (4).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Cnc Router Machine (6).jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Cnc Router Machine (5).jpg" title="image" /> Four spindle cnc machine with four rotary attachment, with flat platform, for flat and round materials carving and cutting. <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Cnc Router Machine (3).jpg" title="image" /> Leadshine AC Hybrid Servo Drive, DELIXI Inverter, Chint Electric, Neat wiring connections <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/Leadshine AC Hybrid Servo Drive Delixi Inverter (1).jpg" title="image" /> 5. CNC router carving samples show: <img border="0" src="https://www.honzhanmachines.com/static/upload/20191127/multi head cnc engraving machine.jpg" title="image" /> This is our factory, we always adhere to the principle of quality first, quality win the market. Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction. <img border="0" src="https://www.honzhanmachines.com/static/upload/6b723124cf049204/159bab2f636aee94.jpg" title="image" /> <img border="0" src="https://www.honzhanmachines.com/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" />
