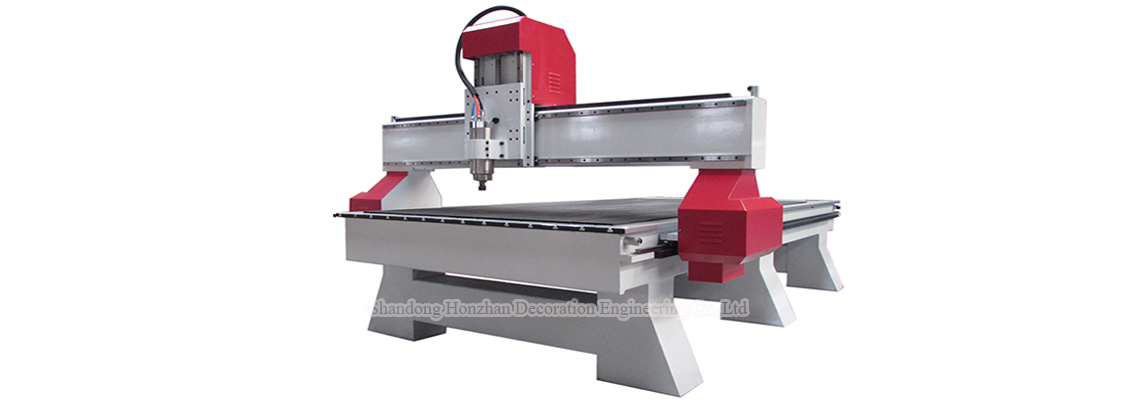

<p><span style="color:#000000;"><strong>HZ-M25 Heavy Duty Woodworking CNC Router Cutting Machine</strong></span></p> <p> </p> <p><span style="color:#000000;"><strong>1. Applicable of our woodworking cnc router</strong><br /> 1). Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.<br /> 2). The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.<br /> 3). Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, <br /> stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.<br /> 4). Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals <br /> such as copper, aluminum plate engraving and milling process.</span></p> <p><span style="color:#000000;"><strong>2. CNC router Features:</strong><br /> 1). It adopts imported linear square guide rails and double row and four rows of ball slides. <br /> It has large bearing capacity, stable operation, high precision and long service life. The imported ball screw has high precision and accurate cutting.<br /> 2). completely out of the computer remotely operated USB interface DSP operating system, handle-type operation, <br /> simpler operation, more user-friendly design, using unique intelligent budget rules, giving full play to the potential of the motor,<br /> achieving high-speed machining, straight line synchronization, The curve is more perfect, <br /> it does not occupy the computer memory and can realize the automatic start and stop of the cutting spindle.<br /> 3). Software compatibility, compatible with a variety of CAD / CAM design and production software such as type3 / Artcam / Castmate / UcancamV9.<br /> 4). six partition vacuum adsorption table, can effectively adsorb different sizes of plates. <br /> The vacuum pump can be selected from the imported brand of oil-free vacuum pump to solve the problem of water circulation vacuum pump in cold weather.<br /> 5). Using high-speed stepper motor and driver, the Y-axis is driven by dual motor, so that it can run at high speed of up to 35 m/min. <br /> With strong cutting spindle, the engraving speed can be improved.</span></p> <p><strong><span style="color:#000000;">3. CNC router technical parameters:</span></strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:solid windowtext 1.0pt;width:431.0pt;" width="575"> <tbody> <tr style="height:22.9pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Model</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">HZ-M25</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Optional</span></p> </td> </tr> <tr style="height:22.0pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working size</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">customizable</span></p> </td> </tr> <tr style="height:22.9pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Machine structure</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Square tube structure bed, vacuum adsorption table</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:22.9pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Machine size</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">2050*3100*1350mm</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:27.2pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Machine feature</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Heavy duty machine body</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:27.2pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Spindle power</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">4.5KW air cooled spindle</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW, 6KW spindle / water cooled</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Maximum working speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">30m/min</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:27.2pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Operating Voltage</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">AC380V, 50HZ</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">AC220V, 50HZ / AC110V, 60HZ</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">operating system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">DSP controller </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Weihong NC studio CNC system</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Motor</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Stepper motor </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Servo motor</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Engraving instruction</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">G code, HPGL, U00, mmg, plt</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Countertop material</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Vacuum and Tslot table top</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">rotary axis for 3D engraving</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Transmission mode</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">X Y axis rack drive, Z-axis ball screw drive</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Running track</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Three-axis good quality linear guide</span></p> </td> <td> <p style="text-align: center;"> </p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Inverter</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW BEST Inverter</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Delta Inverter</span></p> </td> </tr> <tr style="height:26.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Available tool</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Φ3.175-φ12.7</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Dust collector, automatic oiler</span></p> </td> </tr> </tbody> </table> <p><span style="color:#000000;"><em>*For different industries, HONZHAN CNC router can be equipped with different functions to meet the requirements of different users.</em></span></p> <p><strong><span style="color:#000000;">4. CNC router detail images:</span></strong></p> <p><span style="color:#000000;">Aluminum profile with PVC countertop CNC router:</span></p> <p><img border="0" src="/static/upload/a73f3d088356fd8b/e66388461de7bd87.jpg" title="image" /></p> <p><span style="color:#000000;">Vacuum table heavy bed wood cnc router cutting machine:</span></p> <p><img border="0" src="/static/upload/c8f31f2c2483e72d/5544a270f0ebd28d.jpg" title="image" /></p> <p><img border="0" src="/static/upload/4030176036666a4b/cad663b6cdfbba2f.jpg" title="image" /></p> <p>Three spindles vacuum table computer control cnc router cutting machine:</p> <p><img border="0" src="/static/upload/20d1acf642928c9c/036fe09914691ae2.jpg" title="image" /></p> <p>5. Wood cnc router cutting samples show:</p> <p><img border="0" src="/static/upload/1d996db90853edaf/8fc94681d6812521.jpg" title="image" /></p> <p><strong>This is our factory, we always adhere to the principle of quality first, quality win the market.</strong></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><img border="0" src="/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p> <p style="margin:0cm 0cm 0.0001pt; text-align:justify"><img border="0" src="/static/upload/6b723124cf049204/159bab2f636aee94.jpg" title="image" /></p>
