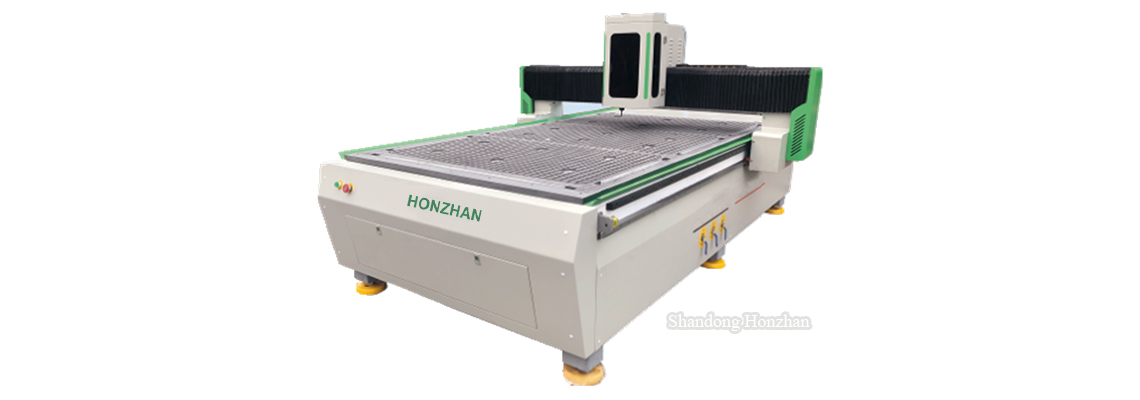

Foam Board (KT board) Acrylic CNC Router Cutting Machine HZ-CNC1325K with Oscillating Knife

Youtube Video link: https://youtu.be/cPjF9mC47jY

1. Application:
HONZHAN HZ-CNC1325K CNC Router with Oscillating Knife can work on the standard materials which the normal CNC Router process, and at the same time,
can cut the soft materials like cardboard, foam panel, mat board, carpet or rubber, and special-shaped sponge, corrugated paper, adhesive sticker, KT board,etc.

2. Features:

1). HONZHAN HZ-CNC1325K CNC Router with Oscillating Knife is the best choice for woodworking industry and advertising industry. It is good at cutting and engraving on brass, aluminum, plastic, acrylic, wood, MDF and other similar materials.
Equipped with oscillating knife, machine is able to cut foam, cardboard, foam rubber, cork, and soft polyurethane foam panels.
2). Heavy-duty welded steel structure, standard steel tube for lathe bed, after aging and tempering treatment, machine could run stably even in a high speed working situation. It can improve your working efficiency.
3). We have strict quality control process and testing process when machine making and after finishing, so machine can work for a long time without effect on accuracy.
4). The machine cable and electrical adopts international famous brand, such as Siemens,Schneider, Phoenix, and Igus from Germany, which makes the machine work in steady and high efficient condition.

3. Technical Parameters:

Model	HZ-CNC1325K
Work area(X,Y,Z)	13002500120mm
Working speed	Max 40m/min
Spindle power	3.2KW spindle, with 5 million HD CCD camera
Spindle speed	6000-24000r/min
Cutting thickness	Max 20mm (according to different materials)
Cutting materials	All kinds KT Board, PVC board, honey board, sticker cardboard, corrugated cardboard, foam board etc.
Drive system	Hybrid servo motor and drive
Guide rail	Three axis imported guide rail
Countertop structure	Vacuum table
Transmission mode	X Y axis high precision helical gear, Z axis TBI ball screw
Operating system	Oscillating knife CCD cutting system, can do normal cutting and cut image after UV printing
Working voltage	AC380V/3PH/50HZ or AC220
Control cabinet	Industrial-grade independent control cabinet (Anti-interference)

*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users. We provide OEM.

4. Detail Images:

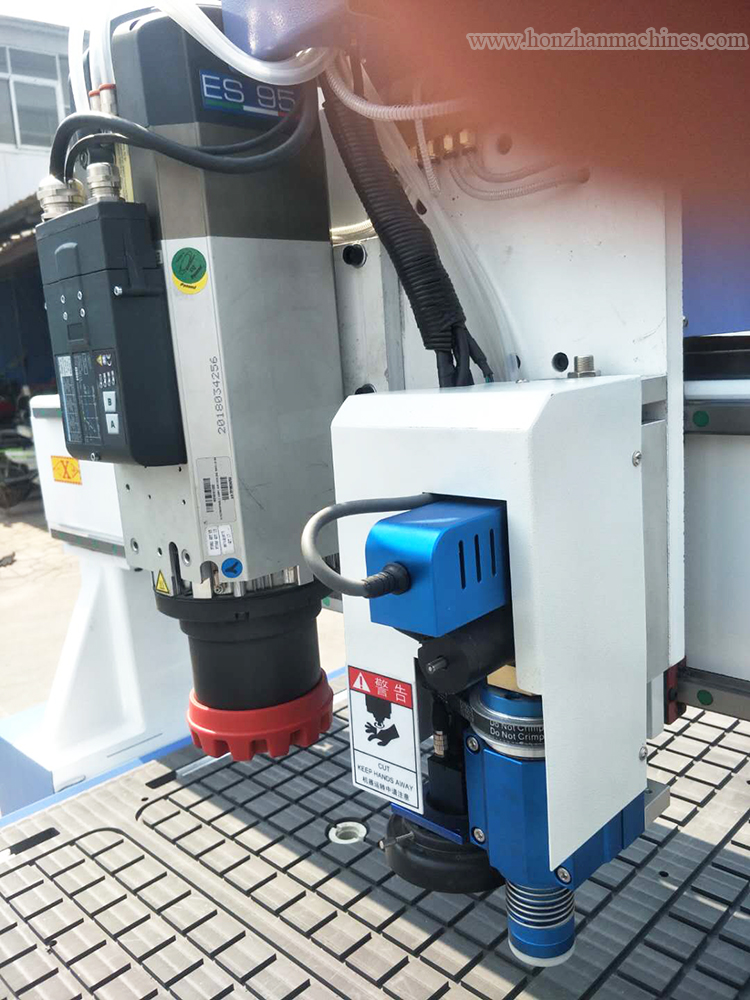

CNC Spindle, with oscillating knife spindle and CCD camera:

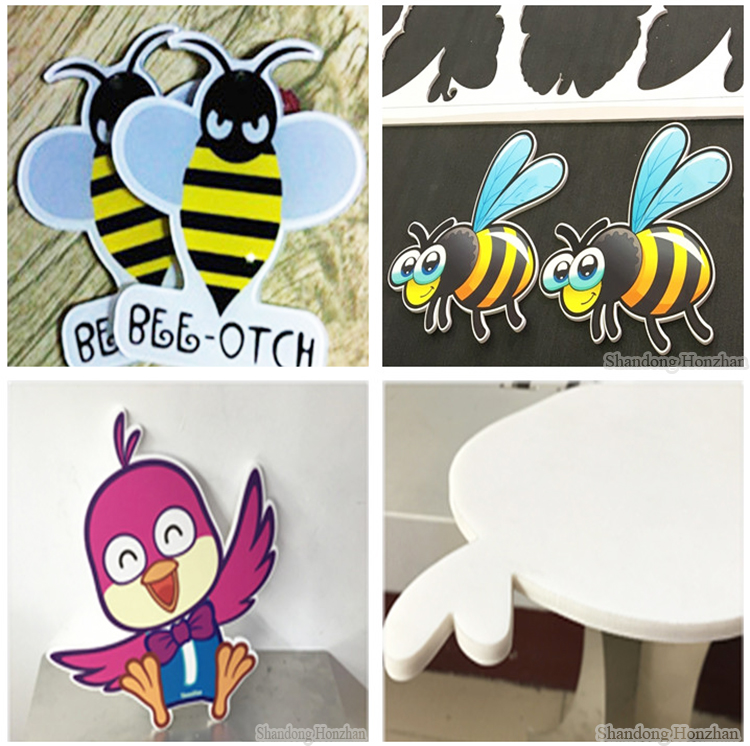

5. Cutting samples show:

Signs Foam Board: smooth edge and right point cutting
Signs Printing Acrylic Board: smooth edge and right point cutting

This is our factory, we always adhere to the principle of quality first, quality win the market.
Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.
