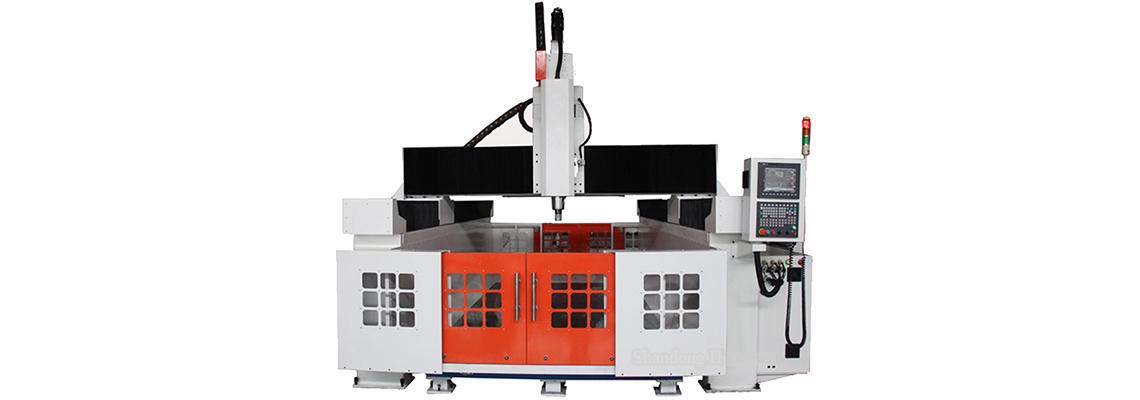

<p>Heavy Styrofoam CNC Cutting Machine HZ-R2040 with Working Size 2000*4000*1000mm</p> <p>Polystyrene Styrofoam Cnc Router is used for making polystyrene mould products and can engrave and cut wood. It has big Z axis height to be suitable for different thickness of foam.</p> <p><strong>1. Application materials:</strong></p> <p>Suitable for engraving and cutting polystyrene foam, plastic, wood materials, PVC, acrylic and other materials.</p> <p><strong>2. Machine Features:</strong><br /> 1). Reliable and durable: all the machine use guaranteed quality parts, like Taiwan Syntec control system, Taiwan Hiwin linear guide, high power Vacuum pump, Taiwan Delta inverter and Taiwan TBI ball screw etc, to keep the machine in best condition even after working for many years.<br /> 2). Long-time working time with high precision and high efficiency: Welded square tube structure, anti-deformation, strong and reliable; High-performance drive motor, the transmission stability is high; Working with dust hood on all three axis, which can let dust away from the rails and ball screws.<br /> 3). Adopting high-speed electric spindle, the maximum speed of the spindle reaches 24000RPM, which ensures the optimization of machining efficiency.<br /> 4). Safe and high efficiency: Double limit protection in avoid of excessive machining; Unique preservation way of the zero point. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages.<br /> 5). Easy operation and low maintenance cost. Adopt original imported cable, high soft anti-interference<br /> 6). OEM service avaliable, according to different configuration requirements.</p> <p><strong>3. Technical parameters:</strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:1pt solid windowtext;width:650px;"> <tbody> <tr> <td colspan="2"> <p>Machine: Heavy Styrofoam CNC Cutting Machine</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Model</p> </td> <td> <p style="text-align: center;">HZ-R2040</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Working area(X,Y,Z)</p> </td> <td> <p style="text-align: center;">2000*4000*1000mm (Optional)</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Traveling Positioning Accuracy</p> </td> <td> <p style="text-align: center;">±0.03</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Lathe bed frame</p> </td> <td> <p style="text-align: center;">Steel square tubes, heavy duty body</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>X,Y Structure</p> </td> <td> <p style="text-align: center;">Rack and pinion</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Z Structure</p> </td> <td> <p style="text-align: center;">Ball screw and linear rails</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Spindle</p> </td> <td> <p style="text-align: center;">7.5KW air cooling spindle, optional 9.0KW</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Spindle speed</p> </td> <td> <p style="text-align: center;">0-24000RPM</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Motor</p> </td> <td> <p style="text-align: center;">Servo motor</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Max. traveling speed</p> </td> <td> <p style="text-align: center;">0-40000mm/min</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>X,Y,Z working accuracy</p> </td> <td> <p style="text-align: center;"><0.01mm</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Max working speed</p> </td> <td> <p style="text-align: center;">0-20000mm/min</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Table surface</p> </td> <td> <p style="text-align: center;">T-slot table, optional vacuum table</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Command language</p> </td> <td> <p style="text-align: center;">G Code, *uoo,*mmg, *pit</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Operating system</p> </td> <td> <p style="text-align: center;">NcStudio controller, optional Taiwan Syntec</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Flash memory</p> </td> <td> <p style="text-align: center;">512M</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Computer Interface</p> </td> <td> <p style="text-align: center;">USB</p> </td> </tr> <tr style="height:18.1pt"> <td> <p>Collet</p> </td> <td> <p style="text-align: center;">ER32</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Working voltage</p> </td> <td> <p style="text-align: center;">AC380V/S0/60Hz</p> </td> </tr> <tr style="height:18.85pt"> <td> <p>Working environment</p> </td> <td> <p style="text-align: center;">0~45 centigrade, 30%-75% Relative humidity</p> </td> </tr> </tbody> </table> <p>*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users.</p> <p><strong>4. Detail Images:</strong></p> <p><strong><img border="0" src="https://www.honzhanmachines.com/static/upload/20191105/Heavy Styrofoam CNC Cutting Machine 2040.jpg" title="image" /></strong></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191105/53. Heavy Styrofoam CNC Cutting Machine HZ-R2040.jpg" title="image" /></p> <p><strong>Machining and Testing:</strong></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191105/53 CNC MILL MACHINING.jpg" title="image" /></p> <p><strong>5. Polystyrene Styrofoam cutting samples show:</strong></p> <p><strong><img border="0" src="https://www.honzhanmachines.com/static/upload/20191104/54.%20foam%20cnc%20router%203%20axis.jpg" title="image" /></strong></p> <p>This is our factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/6c0c99013cfee638/924333da536b0657.jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p>
