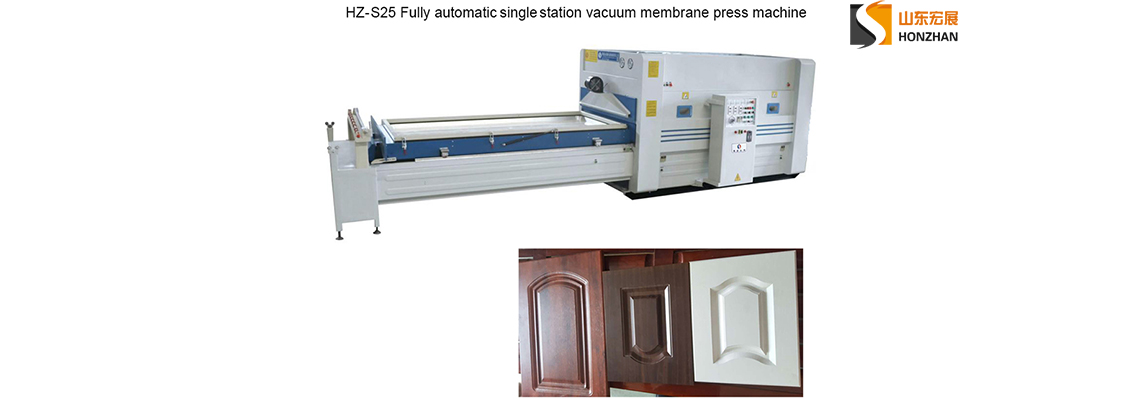

<p>HZ-S25 Fully automatic single station vacuum membrane press machine, vacuum special-shaped laminating machine</p> <p><span style="color:#000000;">Video check: </span><a href="https://youtu.be/yi9haLX7WeY" savefrom_lm="1" savefrom_lm_index="0" target="_blank"><span style="color:#3333ff;">https://youtu.be/yi9haLX7WeY</span></a></p> <p><span style="color:#3333ff;">1. Application range:</span></p> <p><span style="color:#000000;">This equipment can apply various PVC films on furniture, cabinets, paint-free doors and other materials.</span></p> <p><span style="color:#3333ff;">2. Feature:</span></p> <p><span style="color:#000000;">1). The thickness of the steel plate of our machine shell is 1.4 mm.</span></p> <p><span style="color:#000000;">( <em>Better than other manufacturers&#39; machines, other manufacturers&#39; machines&#39;shell thickness is only 1.0 mm or 1.2 mm.</em>)</span></p> <p><span style="color:#000000;">2). Aluminum row heat sink, infrared radiation heating</span></p> <p><span style="color:#000000;">3). Shanghai 100m3 high efficiency and energy saving vacuum pump</span></p> <p><span style="color:#000000;">4). Plastic-sprayed bottom plate, plastic-sprayed compression frame, bottom plate thickness 4mm.</span></p> <p><span style="color:#000000;">( <em>Better than other manufacturers&#39; machines, other manufacturers&#39; machines bottom plate are only 2.2-2.7mm thick.</em>)</span></p> <p><span style="color:#000000;">5). Exclusive telescopic vacuum tube with 36*2mm diameter. </span></p> <p><span style="color:#000000;">(<em>which is better than other manufacturers&#39; machines. The diameter of the vacuum tube of other manufacturers is only 32*1mm.</em>)</span></p> <p><span style="color:#000000;">6). It has the function of thickening the pipe and inflating, heavy-duty chrome-plated feet</span></p> <p><span style="color:#000000;">7). The machine is surrounded by a heating system, and the Foshan iodine tungsten lamp assists heating</span></p> <p><span style="color:#000000;">8). Air strut adopts aviation-grade black rod double-sealed configuration</span></p> <p><span style="color:#000000;">9). Aluminum seat chrome-plated bearing steel linear guide, extremely low noise</span></p> <p><span style="color:#000000;">10). Helical gear transmission system with 10 mm tooth separation</span></p> <p><span style="color:#000000;">11). The vacuum adsorption adopts valve control system, the adsorption capacity of the cabinet is stronger</span></p> <p><span style="color:#000000;">12). High flexible cable, PU trachea, chrome-plated high temperature wire</span></p> <p><span style="color:#000000;">13). The operating system is a regular button, easy to operate</span></p> <p><span style="color:#3333ff;">3. Technical Parameters:</span></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:1pt solid windowtext;font-family:"Times New Roman";font-size:10pt;text-align:justify;width:550px;"> <tbody> <tr style="height:4.5000pt"> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Machine name</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Vacuum shaped laminating machine</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Inner working table size</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">2550*1300 (1140) *60mm, one worktable</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Maximum processing height</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">60mm with pad ruler</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Rated working pressure</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">negative pressure ≥ 0.095Mpa (-0.095Mpa)</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Machine power</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">25KW</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Actual power consumption</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">8KW</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Power supply</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Three-phase four-wire 380V, 50Hz</span></span></p> </td> </tr> <tr style="height:18.4500pt"> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Machine Dimensions</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">6470*1850*1950mm</span></span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">Whole machine weight</span></span></p> </td> <td> <p style="text-align: center;"><span style="font-size:14px;"><span style="color:#000000;">About 1500kg</span></span></p> </td> </tr> </tbody> </table> <p><span style="color:#000000;">Optional configurations:</span></p> <p><span style="color:#000000;">1. Install silicone membrane/plate, it can be used for the transfer film and single-sided solid wood veneer.</span></p> <p><span style="color:#000000;">2. Machine working height within 180mm can be customized, but pay attention to the shape of material and ensure the stretch range of the PVC film.</span></p> <p><span style="color:#3333ff;">4. Detail images:</span></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20201128/vacuum membrane press 8.jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20201128/vacuum membrane press 10.jpg" title="image" /></p> <p><span style="color:#3333ff;">5. Samples:</span></p> <p><img src="https://www.honzhanmachines.com/static/upload/20201128/vacuum membrane press 2.jpg" style="border-width: 0px; border-style: solid; width: 807px; height: 437px;" title="image" /></p> <p><img src="https://www.honzhanmachines.com/static/upload/20201128/vacuum membrane press 3.jpg" style="border-width: 0px; border-style: solid; width: 807px;" title="image" /></p>
