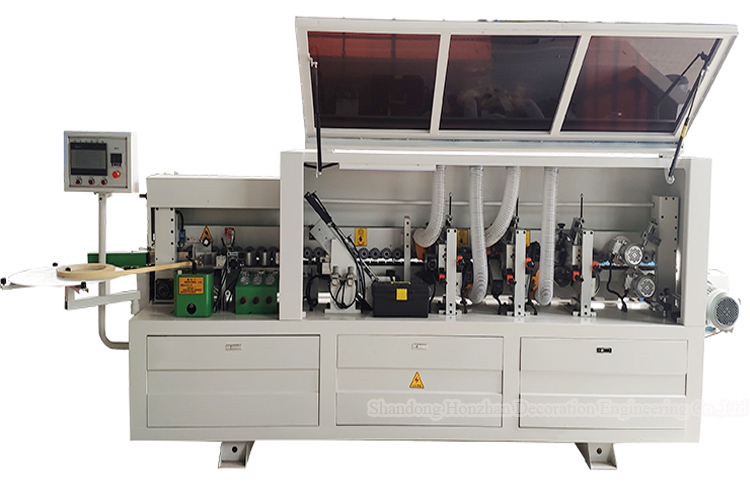

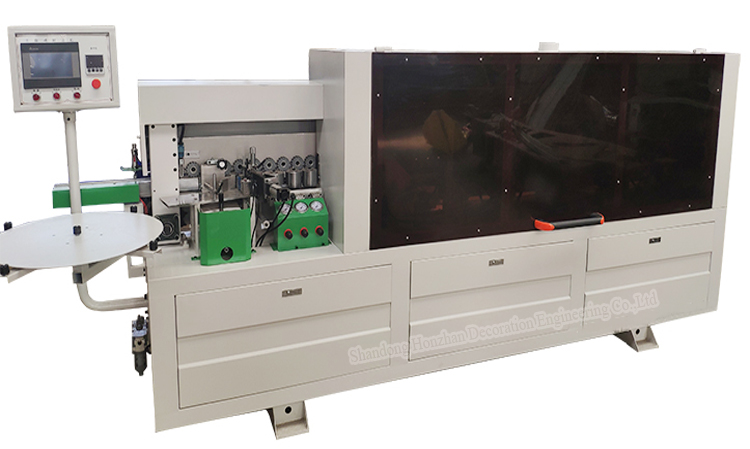

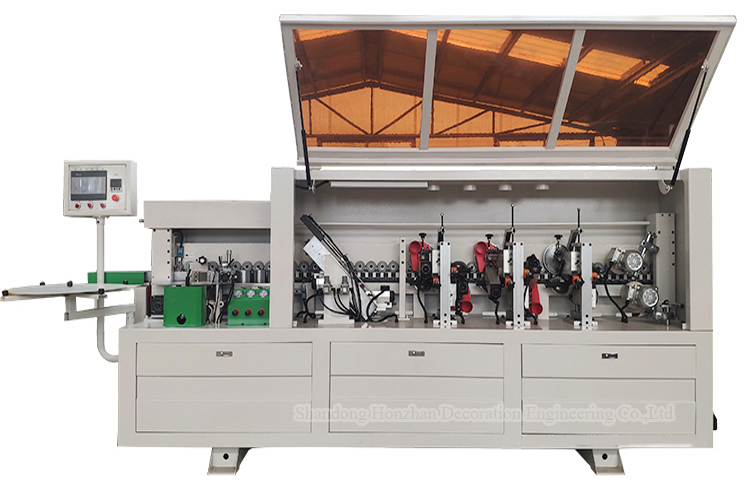

Automatic Edge Banding Machine for Woodworking Furniture Factory Use

Honzhan Automatic Edge Banding Machine is mainly used plywood, fiberboard, and Dimensional cross-section of particle board straight structure Edge.

It is compact structure, reasonable layout and aesthetic appearance; Usage of sound insulation, Dust collection port, anti-overload devices;

It has edge banding, the upper and lower trimmer, surface polishing work unit; It is a new, multi-functional, straight edge banding machine, which is very popular in woodworking furniture factory.

1. Applicable Materials:

Auto Edge Banding Machine is suitable for linear sealing side of plank artifacts of solid board, fiberboard, particleboard etc.
Edge banding material artical available solid wood, MDF, PVC board, veneer board and so on.

2. Features:

1). Machine adopt imported motor and high quality electrical components.

2). Machine adopt integrated frame, excellent stability, very suitable for long time work.

3). Products serialization, diversification of the customer to choose.

4). Automatic edge banding machine is widely used for kitchen cabinet, wardrobe, furniture edging treatment. High precision and high efficiency.

3. Function of Auto Edge Banding Machine:
1).  Gluing Press — End Cutting — Fine Trimming — Scraping— Buffing
2).  Board preheat — Automatic glue — Automatic feeding — Automatic send belt — Automatic pressure
3).  Automatic precision trimming up and down
4).  Automatic blowing up and down side
Main functions: preheating, gluing, pressing, rough repair, fine repair, scraping edge, polishing

4. Technical Parameters:

*For different industries, HONZHAN Edge Banding Machines can be equipped with different configuration to meet the requirements of different users.

5. Detail Images:

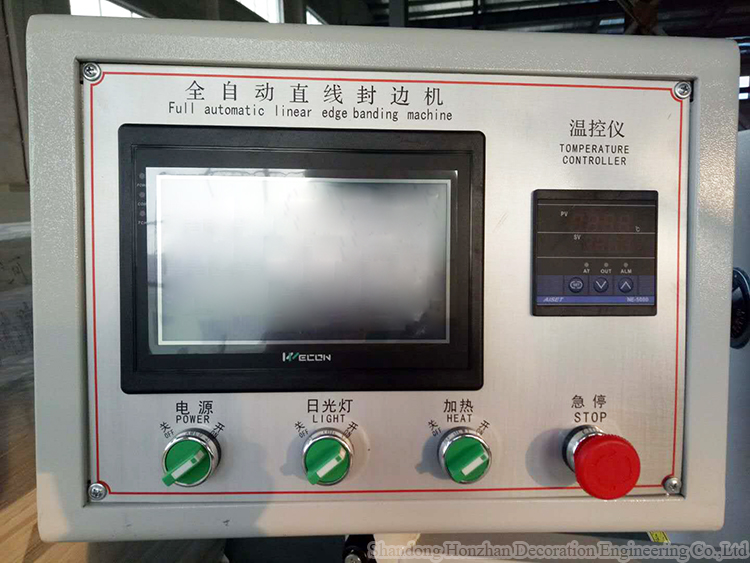

Control Panel :

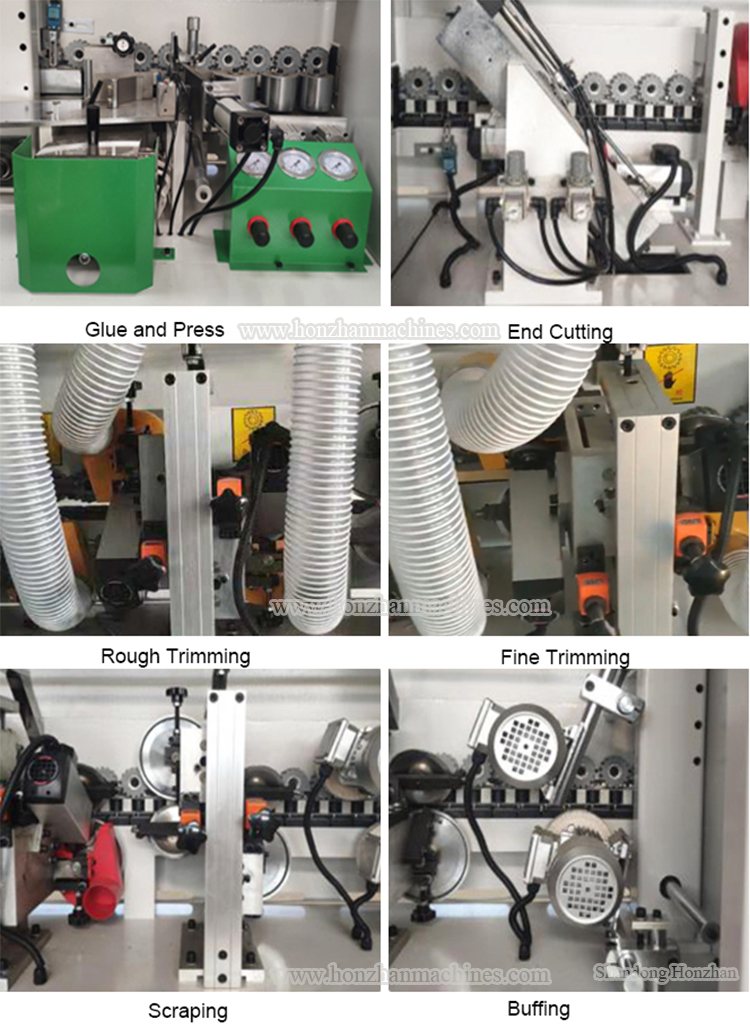

Glue and Press

Press and glue the edge of the workpiece and the edge band. The glue mechanism adopt a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

End Cutting

End trim running through precise liner track, automatically tracked with mould and fast cut with high frequency high speed motor, guaranteed the plain and complete of cutting side.

Rough Trimming

Rough trimming use flat knife which can prevent the thin veneer cracked. Besides rough trimming can be the first banding process of PVC and acrylic. Can reduce the cutting forces and wear of fine trimming cutter.

Fine Trimming

Fine trim the exceeding edge on the top and bottom side of the pane, ensure the top and bottom side of the edge smooth and even.

SCRAPING

Scraping units used to remove the texture which might happened during trim processing, guarantee the band to be smooth and plain.

BUFFING

End polishing to make a smooth surface, refined edge banding wood panel.

6. Samples Show:
