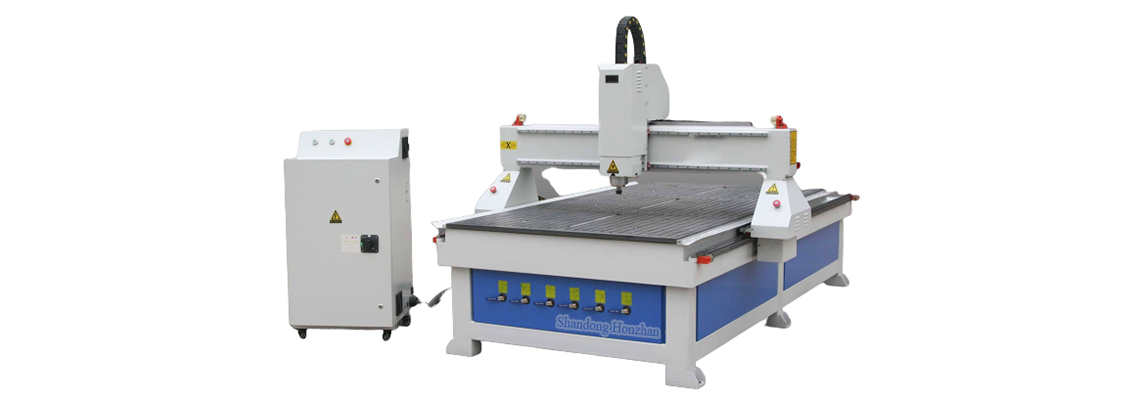

<p>Air Cooling Spindle CNC Router HZ-R1325V with Vacuum Table 5.5KW Vacuum Pump</p> <p><strong>1. Application:</strong><br /> 1). Wood Industry: A large area flat plate engraving , wood panel furniture carving, wood art murals, wood cabinet doors carving. <br /> 2). Wood Products Processing: Sewing machine table, electrical counter table, sports equipment. <br /> 3). Artwork: Photo frame, jewelry box. Musical Instrument Industry: Instrument three-dimensional surface engraving, shape cutting. <br /> <strong>2. Machine Overview: </strong><br /> HZ-R1325 series is economical CNC router for woodworking, fulfilling the need for the production with most wooden materials.<br /> Device use vacuum system and dust collector, convenience to work fast and efficiently.</p> <p><strong>3. CNC router features:</strong><br /> 1). The whole body of the bed is welded and tempered at high temperature to ensure small deformation, good rigidity and high strength.<br /> 2). Machined rack and pinion with imported equipment, Taiwan original square linear guide, stable transmission.<br /> 3). The Y-axis is a two-axis drive motor with high speed, stable operation and large cutting force.<br /> 4). With breakpoint, power-off and continuous engraving function, it has the function of automatic error correction of homing point, <br /> which effectively guarantees the processing precision when working for long time.</p> <p><strong>4. Technical Parameters:</strong></p> <table border="1" class="Table" style="background:white;border-collapse:collapse;width:650px;" width="563"> <tbody> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Model</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">HZ-R1325V</span></p> </td> </tr> <tr style="height:26.7pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Work area(X,Y,Z)</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1300*2500*200mm</span></p> </td> </tr> <tr style="height:26.7pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Spindle power</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">3.2KW, Optional 5.5KW, 7.5KW</span></p> </td> </tr> <tr style="height:26.7pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Spindle </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Water cooling spindle, optional air cooling spindle</span></p> </td> </tr> <tr style="height:23.95pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Machine structure</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Steel structure lathe bed, T-slot sectional materials</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Work holding </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">vacuum and t-slot table top</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Vacuum pump</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">5.5KW, optional 7.5KW</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Control Sodtware</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Weihong NC Studio, optional RichAuto DSP controller</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Driving system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Leadshine step driver DMA860, 450B motor</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Precision (mm) </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">0.07</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Positioning accuracy(mm)</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">0.02</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Repeatability (mm) </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">0.02</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Travel speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">20m/min</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Processing speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">15m/min</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Available tools(mm)</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">φ3.175-φ12</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Drive system </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Stepper motor, optional servo motor</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Working voltage </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">220V, 50HZ, optional 110V</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Command code </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">G code(*nc*mmg,*u00,etc),*.eng</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Compatible software </span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Compatible with any software generating G code file in Windows98/XP/ Win7</span></p> </td> </tr> <tr> <td> <p style="text-align: center;"><span style="color:#000000;">Optional parts</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Rotary axis, Linear guide auto oiler</span></p> </td> </tr> </tbody> </table> <p>*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users.</p> <p><strong>5. CNC router detail images:</strong></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191120/Air Cooling Spindle CNC Router HZ-R1325V with Vacuum Table 5.5KW Vacuum Pump (3).jpg" title="image" /></p> <p>Good quality linear guide, ball screw, air cooling spindle:</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/df49b14dc0e19396/ac4acf30787a5a94.jpg" title="image" /></p> <p>Linear guide automatic oiler:</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/837af5f42c584ed4/e2b5b8d06ae892f8.jpg" title="image" /></p> <p>VACUUM AND T-SLOT TABLE TOP:</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/78ecde42a1e27104/2d160a06acaf9587.jpg" title="image" /></p> <p>Air cooled Vacuum Pump:</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/e55bfd71a68a072e/46e504cca1c7a62f.jpg" title="image" /></p> <p>Neat chassis, BEST inverter, Leadshine drive system, RichAuto DSP controller:</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/246bcfad759b8243/c05dc7232b91b63d.jpg" title="image" /></p> <p><strong>6. CNC router cutting samples show:</strong></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/ed4ff6e8f719cc42/f24a2e658ac85426.jpg" title="image" /></p> <p><span style="color:#000000;">This is our factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</span></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/8ff0aa33b1c755f0/5fc3695aa7eb7fef.jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p>
