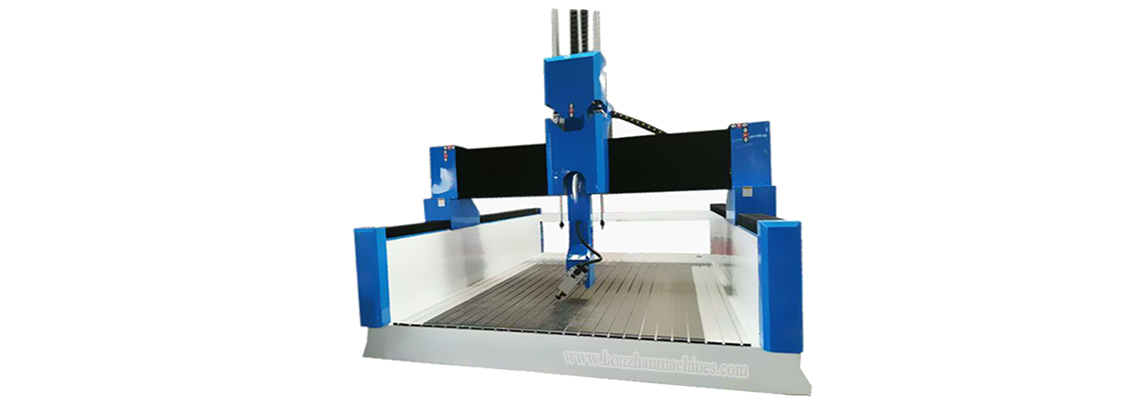

<p><span style="color:#000000;">HZ-1325F Styrofoam Polystyrene EVA Foam CNC Router Four-Axis with Swing Head</span></p> <p><span style="color:#000000;">Youtube Video link: <a href="https://youtu.be/YtXM1YM_4PI" target="_blank">https://youtu.be/YtXM1YM_4PI</a></span></p> <p><strong><span style="color:#000000;">1. Features:</span></strong></p> <p><span style="color:#000000;">1). Machine uses a spindle swing head, achieve 90 degrees of work left and right, can do 3 axis flat cutting, also can engrave and cut semi-circular foam, 3d Three-dimensional model. </span></p> <p><span style="color:#000000;">2). CNC Router adopts gantry structure. The Y guide rail has a stable support surface and a rack transmission method. </span></p> <p><span style="color:#000000;">The transmission is stable, ensuring that the long-term high-speed operation is not deformed or shaken.</span></p> <p><span style="color:#000000;">3). The X, Y, and Z axis of the equipment are all linear guides. The body of the steel structure has large bearing capacity, long service life, simpler operation, and more humanized design.</span></p> <p><span style="color:#000000;">4). Good software compatibility, compatible with various CAD, CAM design software such as TYPE3, ARTCAM, CASTMATE etc.</span></p> <p><strong><span style="color:#000000;">2. Application industry:</span></strong></p> <p><span style="color:#000000;">Applicable to the mold industry. Engrave and cut lettering on all kinds of large non-metal molds, especially for automotive foam molds, Styrofoam, </span></p> <p><span style="color:#000000;">shipboard molds, aviation wood molds, train wood molds, etc., as well as casting wood molds, foam, casting foams, food molds (such as moon cake molds) and other molds Precision production.</span></p> <p><strong><span style="color:#000000;">3. Machine Specification:</span></strong></p> <table border="1" class="MsoTableGrid" style="border-collapse:collapse;border:1pt solid windowtext;width:700px;"> <tbody> <tr> <td colspan="2"> <p><span style="color:#000000;">Machine: HZ-1325F Foam CNC Router with Swing Head</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Model</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">HZ-1325F</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Table size</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">2200*3300mm</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working area(X,Y,Z)</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">1300*2500*800mm (customized)</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Travelling speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">20m-60m/min (MAX)</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working speed</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">10m-15m/min (MAX)</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Working voltage</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">AC380V/3PH/50HZ</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Spindle power</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Air cooling 6KW spindle, 24000RPM speed, use ER32 Nut and Tool holder</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Device architecture</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">De-stressing and finishing milling U-shaped bed, one molding process,</span></p> <p style="text-align: center;"><span style="color:#000000;">Anti-jamming independent cabinet, high structural stability and small deformation</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Driving system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Leadshine high-precision torque servo drive and motor + servo swing head</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Transmission parts</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Alloy hardened helical Rack and pinion, </span></p> <p style="text-align: center;"><span style="color:#000000;">TaiWan original TBI 2510 Ball screw transmission and Hiwin linear rail</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Operating system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Weihong NK280 control system</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Countertop material</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Aluminum profile with PVC</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Electrical Accessories</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Omron, Chint</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Inverter</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">BEST brand 7.5KW high precision inverter</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Power cable</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">high-soft high-speed shielded cable, anti-interference and anti-breakage</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Lubrication system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Automatic Oil pump centralized lubrication control</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Security system</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Overtravel protection, electrical protection</span></p> </td> </tr> <tr style="height:18.1pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Connector</span></p> <p style="text-align: center;"> </p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">The transmission parts are fixed by high-strength 12.9 grade screws, and the sheet metal is fixed by 304 stainless steel screws.</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Precision guarantee</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">Each shaft is rigidly fixed, and the precision parts are equipped with positioning pins.</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Standard accessories</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">toolbox (include wrench, tools),</span></p> <p style="text-align: center;"><span style="color:#000000;">collet (ER32), including φ8,φ12.7</span></p> </td> </tr> <tr style="height:18.85pt"> <td> <p style="text-align: center;"><span style="color:#000000;">Optional accessories</span></p> </td> <td> <p style="text-align: center;"><span style="color:#000000;">dust collector, Vacuum table</span></p> </td> </tr> </tbody> </table> <p>*For different industries, HONZHAN CNC router can be equipped with different configuration to meet the requirements of different users.</p> <p><strong>4. Detail Images:</strong></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191112/HZ-1325F Foam CNC Router with Swing Head (3).jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191112/Polystyrene EVA Foam CNC Router Four-Axis with Swing Head.jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191112/HZ-1325F Foam CNC Router with Swing Head (4).jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/20191112/Foam CNC Router with Swing Head.jpg" title="image" /></p> <p><strong>5. Polystyrene Styrofoam cutting samples show:</strong></p> <p><strong><img border="0" src="https://www.honzhanmachines.com/static/upload/20191104/54.%20foam%20cnc%20router%203%20axis.jpg" title="image" /></strong></p> <p>This is our new factory, we always adhere to the principle of quality first, quality win the market.<br /> Looking forward to cooperating with customers all over the world, believe we will supply best quality products to meet your expectations and satisfaction.</p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/6c0c99013cfee638/924333da536b0657.jpg" title="image" /></p> <p><img border="0" src="https://www.honzhanmachines.com/static/upload/8f9a1158240bc928/e8224f765624287f.jpg" title="image" /></p>
