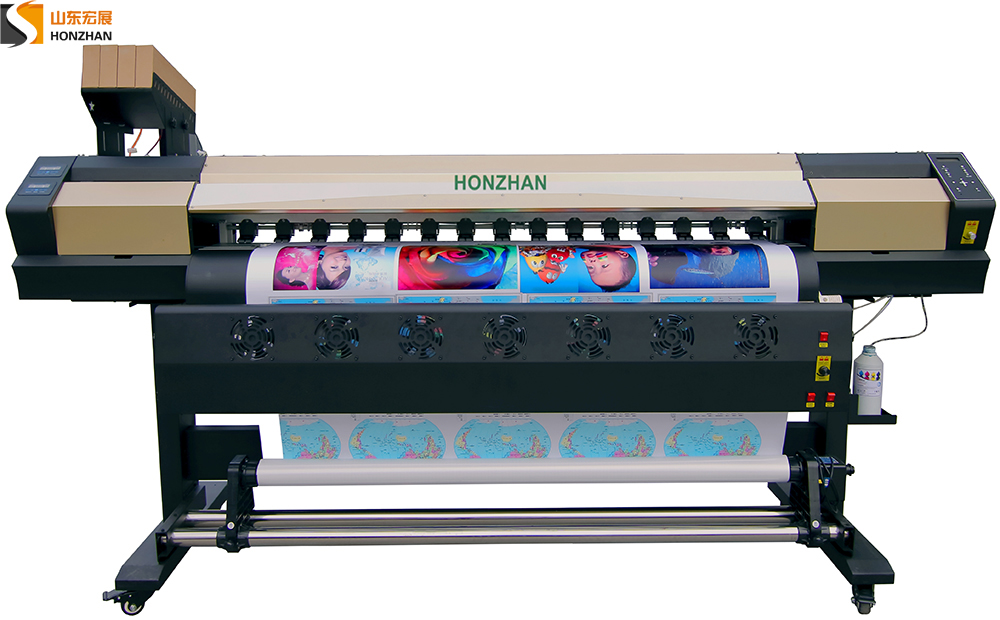

HZ-UV1600, HZ-UV1800 large format UV printer 1.6meter 1.8meter with dual printhead

1. Printer Feathers:

1). Heating system: Intelligent front and rear heating, more accurate temperature setting. The heating adopts large area of tin foil, keep heating more uniform.

2). In and out of platform: The new aluminum profile design, the paper output platform adopts the corrugated paper output design, breaking through the traditional arc design.

3). Ink supply system: Adopt new front-end secondary ink-cartridges ink supply technology, which can adjust the constant liquid level.

4). Capping maintenance station: Use capping station, stable ink absorption, easy to adjust.

5). Main board configuration: Genuine HOSON industrial grade board, high performance, high precision and high speed. (One of the best main boards in the large roll printers industry)

6). Power supply system: Our printer uses filter-type power socket to ensure that the machine is not affected by interference currents.

7). Material feeding system: use two rollers feeding system

2. Technical Parameters:

Model	HZ-UV1600		HZ-UV1800
Max print size	Width:1600mm, Length is no limited.		Width:1800mm, Length is no limited.
Printhead	1pc Epson XP600 printhead		2pcs Epson XP600 printheads
Printing speed	4 PASS, 28 square meters/hour 6 PASS, 20 square meters/hour
Print height	The distance between printhead and material is 2-8mm
Printing materials	PP, photographic paper, light box cloth, LED light film, drawing paper, canvas, car sticker, transparent film, reflective material, etc
Ink	UV ink
Ink Color	C M Y K
Ink supply system	1.2 Liter large refillable ink cartridges, continuous ink supply system
UV Led system	Water-cooled dual LED UV lamps curing
RIP Software	Maintop 6.1, Photoprint, UltraPrint
Feeding System	Double-roller cloth feeding system, double-motor feeding and unwinding system. Double roller bearing weighs 60kg
Materials adsorption system	Stepless adjustable suction
Nozzle cleaning	Automatic micro-cleaning, with anti-blocking flash spray function, moisturizing function
Anti-warping pressure paper	Stainless steel anti-warping pressed paper
Automatic feeding device	Heavy feeding device 60kg
Data transfer interface	Hi-USB2.0 or Network cable interface
machine power	220V, 50HZ, optional 110V,60HZ
Machine size	28008301300mm	29208301300mm
Machine weight	About 310kg	About 350kg

3. Detail images:

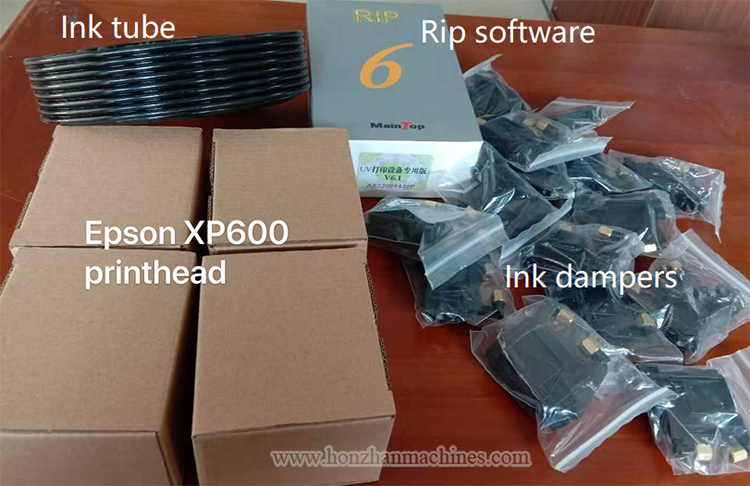

Accessories, MainTop Rip software:

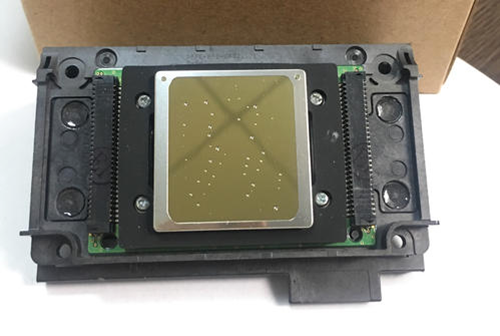

Epson XP600 printhead:

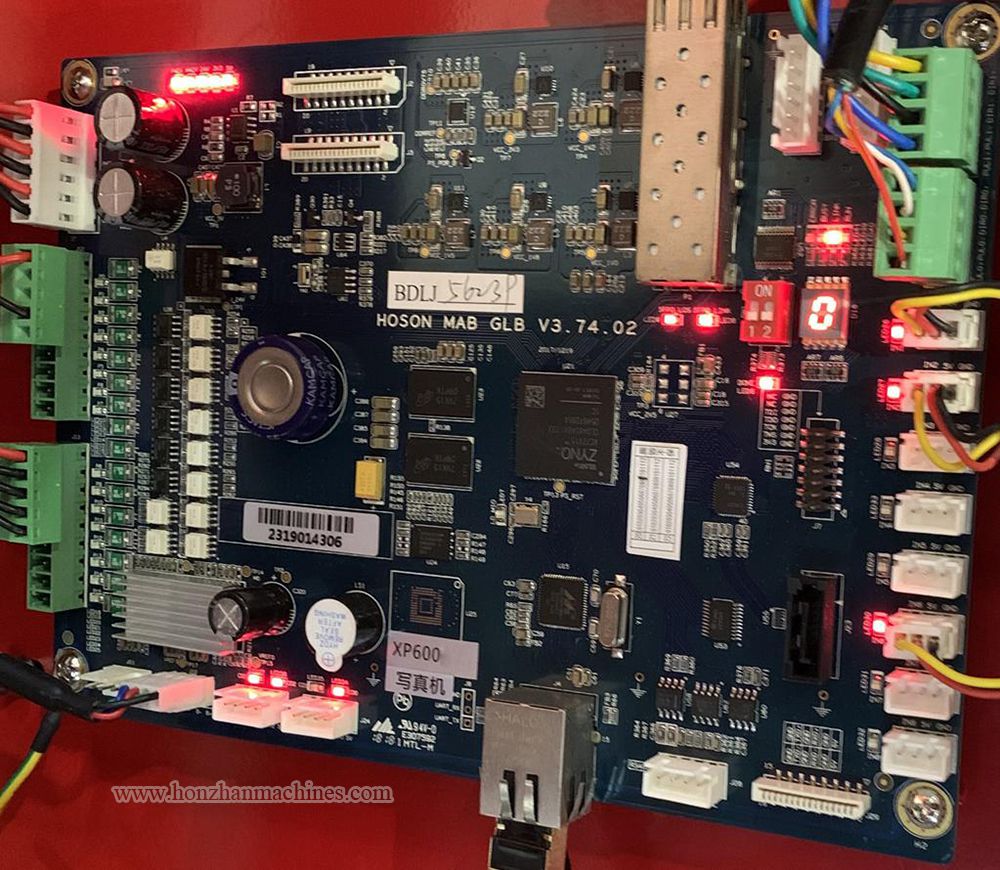

Genuine Hoson mainboard:

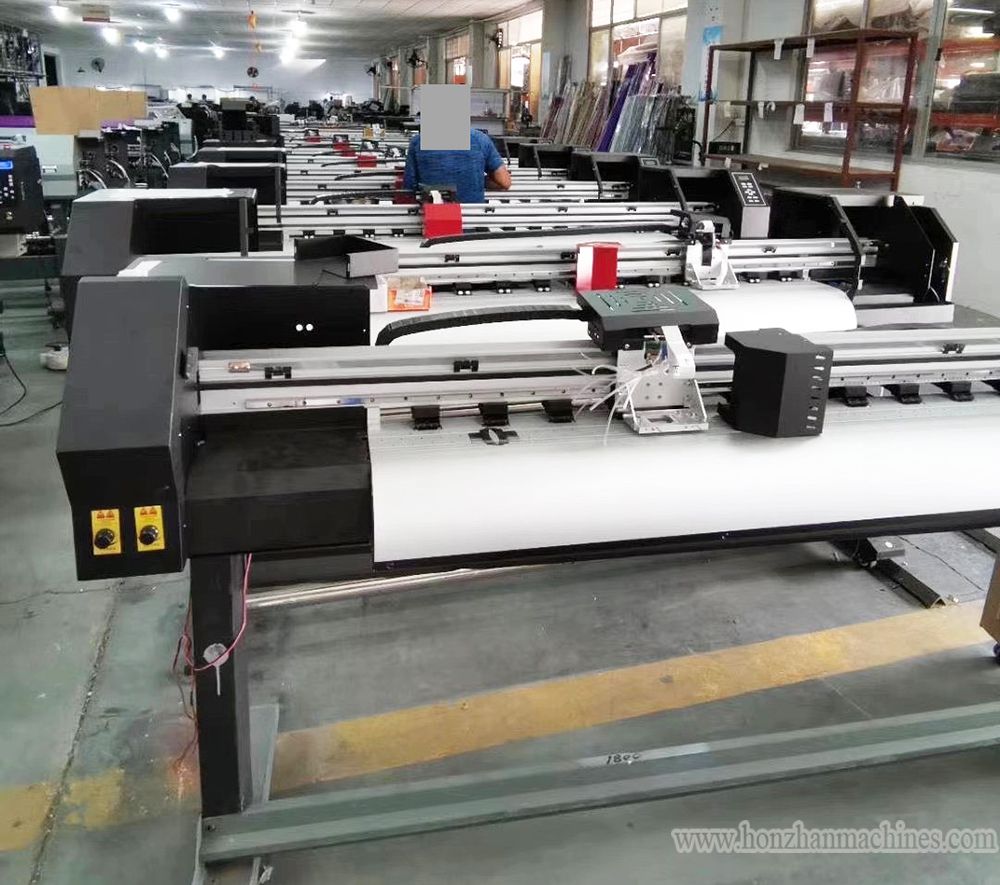

Production workshop:

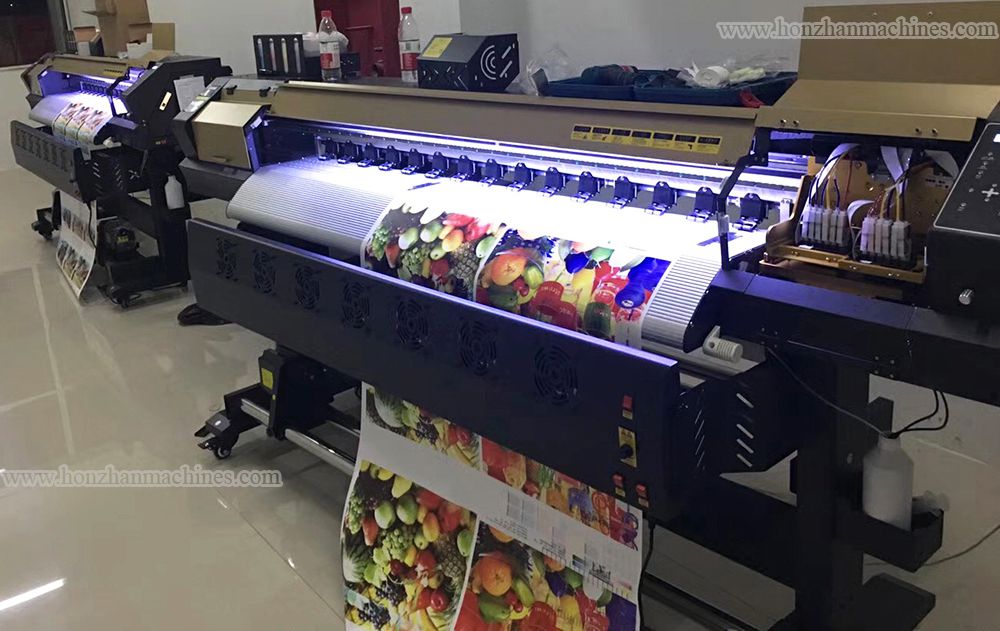

Show room:
